84 10 050 Removing and installing (replacing) USB hub
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .
Necessary preliminary tasks:
- Remove GEAR SELECTOR SWITCH CARRIER

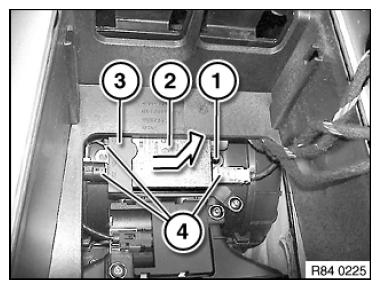

Unlock catch (1) and guide USB hub (2) in direction of arrow out of holder (3).
Disconnect plug connection (4).
Installation:
Make sure USB hub (2) is correctly seated in holder (3).
Make sure wiring harness is correctly laid.
