61 35 688 Replacing solar rain/light sensor and fogging sensor

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

Necessary preliminary tasks:

If necessary, remove INTERIOR REARVIEW MIRROR.

For equipment specifications:

without 2-zone automatic air conditioning (optional equipment 534)
without 4-zone automatic air conditioning (optional equipment 4 NB)
with Head-Up Display (optional equipment 610)

Disconnect plug connection (2).

Unlock metal spring (3) in direction of arrow.

Remove solar rain/light and condensation sensor (1) from windscreen.

Installation:

Close plug connection (2) only after fitting solar rain/light and condensation sensor on windscreen!

Carefully clean windscreen in the contact area with the solar rain/light and condensation sensor! Remove all silicone residues.

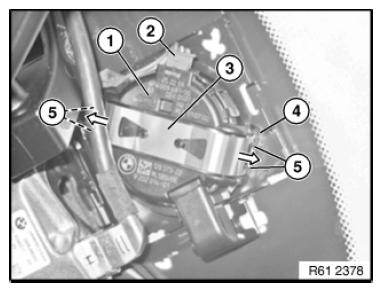

Fig 1: Removing Solar Rain/Light And Condensation Sensor From Windscreen

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cover from the new solar rain/light and condensation sensor. The silicone-coated surface below it must not be touched!

Press metal spring (3) centrally to ensure that there is correct engagement in both hooks (5) on every side of the retaining element (4).

Replacement:

Carry out coding to determine the windscreen type for the light sensor.

Carry out initialization to calibrate the rain sensor to the windscreen.
