61 35 115 Removing and installing/replacing footwell module

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
Only E72: Disconnect BOTH BATTERY EARTH CABLES
Remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR, LEFT

Fold back carpet (1) in area of A-pillar a little.

Disconnect plug connection (2).

Release plastic nuts (3).

Pull footwell module (4) forwards a little.

Disconnect plug connection (5).

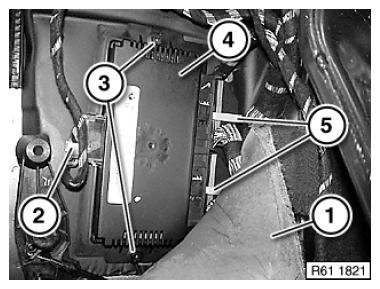

Fig 1: Identifying Footwell Module, Plug Connection, A-Pillar Carpet And Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
