12 36 008 Removing and installing (replacing) hybrid current distributor

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work:

DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INSTRUCTIONS for handling with hybrid vehicles

Necessary preliminary tasks:

Remove ELECTRONICS BOX POWER MODULE COVER.

Unlock HIGH-VOLTAGE CABLE (1) AND DISCONNECT.

Release screw (2).

Tightening torque 12 36 4AZ .

Unlock HIGH-VOLTAGE CABLE (3) AND DISCONNECT.

Release screws (4).

Tightening torque 12 36 10AZ .

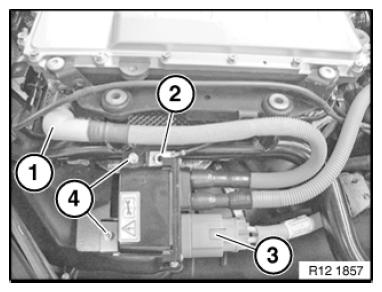

Fig 1: Identifying High-Voltage Cables And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock HIGH-VOLTAGE CABLE (1) AND DISCONNECT.

Feed through high-voltage cable underneath

Auxiliary Power Module (APM) (2).

Remove hybrid current distributor (3).

Installation:

Make sure cables are correctly routed without chafing.

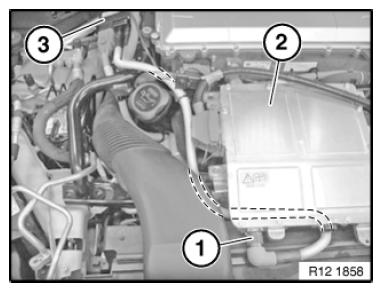

Fig 2: Identifying High-Voltage Cable, Power Module And Hybrid Current Distributor

Courtesy of BMW OF NORTH AMERICA, INC.
