11 00... Removing and installing (replacing) Power Electronic Box cover
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life!
WARNING:
The following points must be strictly observed prior to starting work:
- DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
- Observe SAFETY INFORMATION for handling with hybrid cars
WARNING:
Activation of the high-voltage system while the power electronic box cover is removed is always prohibited. The high-voltage safety connector may only be used with completely installed power electronic box cover. The high-voltage system may never be activated and the combustion engine may never be operated (e.g. for test purposes) when the power electronic box cover is only provisionally mounted.

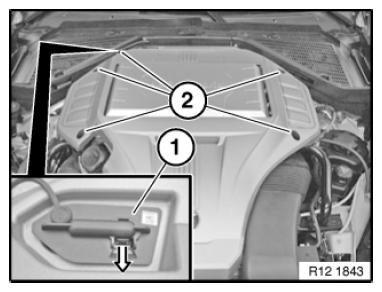

Release plug connection (1) in direction of arrow and remove in upward direction.
Installation note:
Make sure plug connection (1) is properly locked.
Unfasten screws (2).
Tightening torque 12 36 1AZ .
Remove cover for electronics box power module in upward direction.
