51 47... Removing and installing/replacing battery cover

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Remove battery cover upwards.

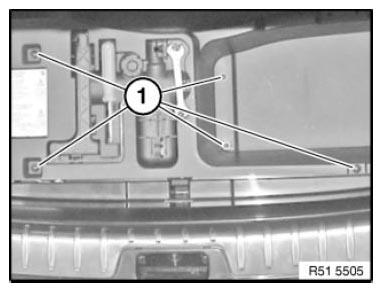

Fig 1: Identifying Battery Cover Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove on-board tool kit from battery cover.
