61 34... Removing and installing/replacing socket in center console (rear/left or right)
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR CENTRE CONSOLE TRIM

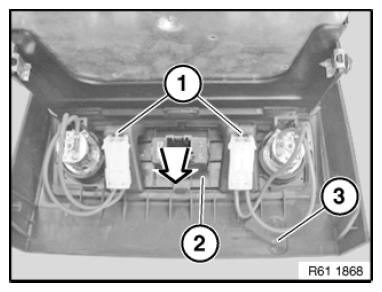

Unlock retaining lugs for left or right plug housing (1).
Detach left or right plug housing from rear center console trim (3).
Unclip trim (2) in direction of arrow from rear center console trim (3).
Installation:
Retaining lugs on trim (2) must not be damaged or missing.
Make sure trim (2) is correctly engaged on rear center console trim (3).

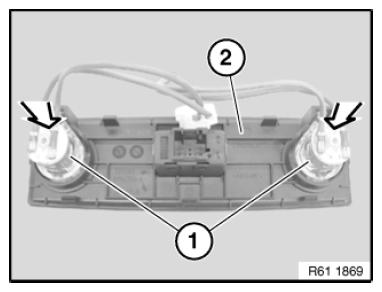

Unlock retaining lugs on left or right socket (1) with a suitable tool.
Press left or right socket (1) in direction of arrow out of trim (2).
Installation:
Make sure left or right socket (1) is correctly seated in trim (2).
