32 13 650 Removing and installing/replacing EH converter for Servotronic

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

Necessary preliminary work

Remove REAR UNDERBODY PROTECTION
RELEASE bottom of steering shaft at steering box

Disconnect plug connection (1).

Unfasten screws (2).

Remove EH converter.

Installation note:

Clean side return orifice with compressed air.

Align EH converter to opening in hydraulic steering gear, press by hand into hydraulic steering gear up to stop, insert screws (2) and tighten down.

Tightening torque 32 00 2AZ.

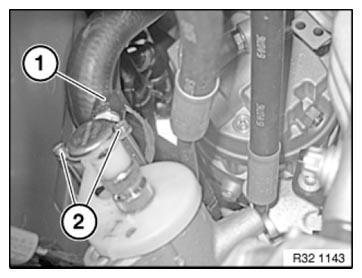

Fig 1: Identifying EH Converter Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Fill and bleed hydraulic system . See 32 13 006 BLEEDING POWER STEERING (VERSION WITH DYNAMIC DRIVE) or 32 13 006 BLEEDING POWER STEERING UNIT .
