41 00... Frame alignment control dimensions, body

Dimensions in mm.

Measurement tolerances:

• ≤ 1000 mm ± 1.5 mm
• ≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the straightening attachment.

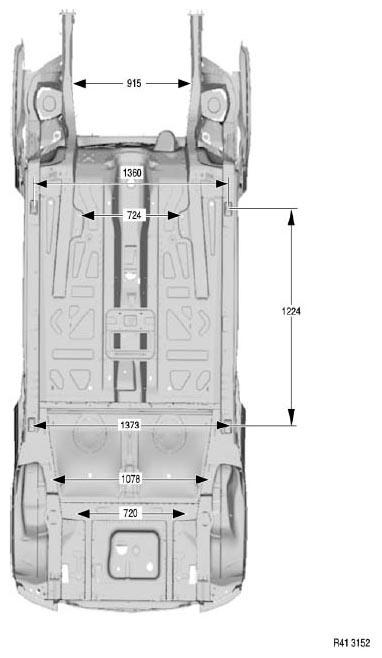

Underbody view 1

Fig 1: Underbody Dimension (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

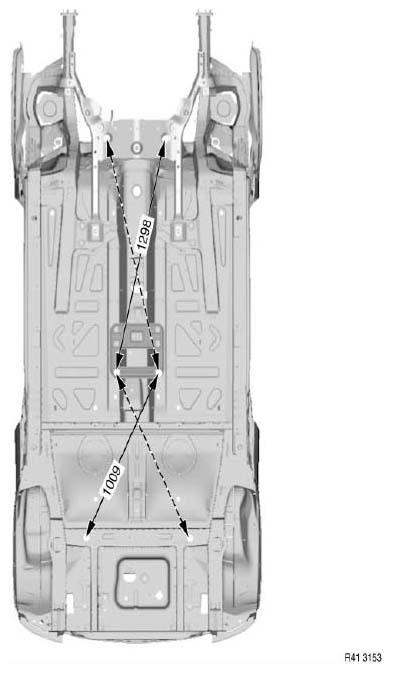

Underbody view 2

Fig 2: Underbody Dimension (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

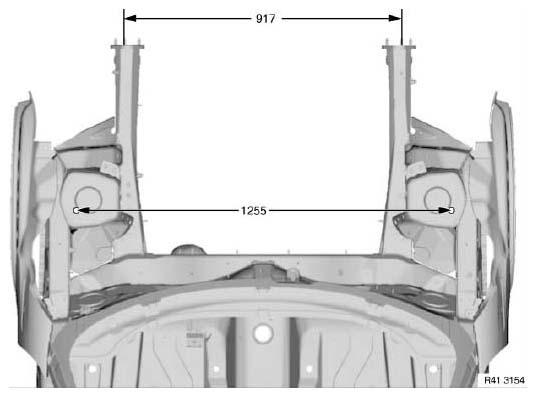

Top view, front end

Fig 3: Top View, Front End Dimension (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.
