54 34... Repair wind deflector fixing

Overview of spare parts in wind deflector repair kit: Wind deflector repair kit: BMW part number 54 34 7 358 170

1. Detent pin
2. Compression spring
3. Slide

Fig 1: Wind Deflector Repair Kit: BMW Part Number 54 34 7 358 170

Courtesy of BMW OF NORTH AMERICA, INC.

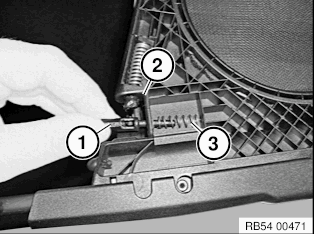

Slide detent pin (1) through the wind deflector opening (2). Guide compression spring (3) into the detent pin (1).

Fig 2: Sliding Detent Pin Through Wind Deflector Opening

Courtesy of BMW OF NORTH AMERICA, INC.

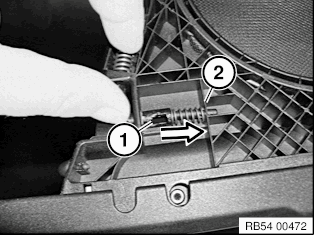

Press detent pin (1) completely into the guide on the wind deflector (2).

Fig 3: Pressing Detent Pin Completely Into Guide

Courtesy of BMW OF NORTH AMERICA, INC.

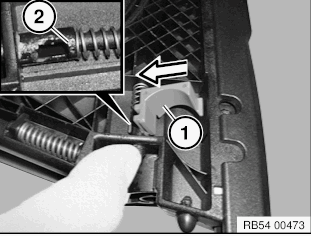

Press slide (1) as far as it will go into the opening of the detent pin (2).

Fig 4: Pressing Slide As Far As It Will Go Into Opening Of Detent Pin

Courtesy of BMW OF NORTH AMERICA, INC.

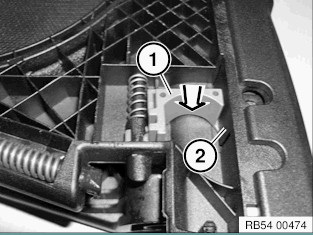

Press slide (1) down into the guide of the wind deflector (2). Installation note: Slide (1) must engage fully in the guide on the wind deflector (2). Run a function check.

Fig 5: Pressing Slide Down Into The Guide Of Wind Deflector

Courtesy of BMW OF NORTH AMERICA, INC.
