52 13... Removing and installing position switch

Necessary preliminary tasks

• Remove front seat .

Unfasten plug connection (1) and disconnect. Pull the metal clamp (2) off the seat mechanism.

Fig 1: Identifying Metal Clamp And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1). Remove position switch (2).

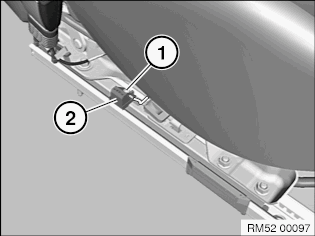

Fig 2: Identifying Position Switch And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
