72 12... Deactivating front passenger airbags with key switch: Activation

  1. 2 Turn key-operated switch with ignition key to "ON" position.

    All the airbags in the vehicle are activated and are triggered in appropriate situations.

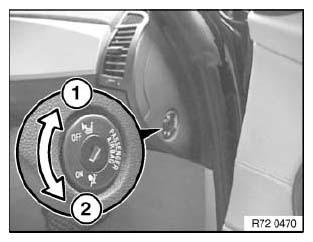

    Fig 1: Identifying Key-Operated Switch ON And OFF Position
    G04728069Courtesy of BMW OF NORTH AMERICA, INC.
