61 31 492 Replacing level switch for windscreen washer system
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Release WHEEL ARCH COVER at front (rear section) right in working area and pull forwards

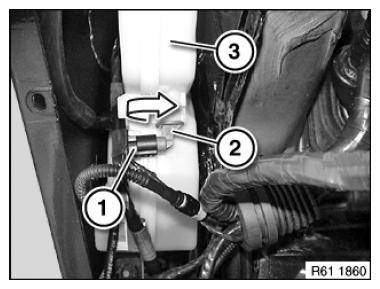

Disconnect plug connection (1).
Turn level switch for windscreen washer system (2) in direction of arrow and remove towards bottom from fluid reservoir for windscreen washer system (3).
