61 31 310 Replacing brake light switch

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY

NOTE: Brake light switch (2) is situated above the brake pedal.

Disconnect plug connection (1).

Pull brake light switch (2) in direction of arrow out of brake light switch holder (3).

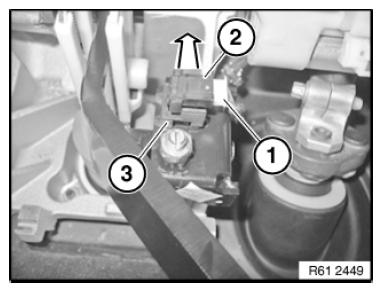

Fig 1: Pulling Brake Light Switch From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Press brake pedal.

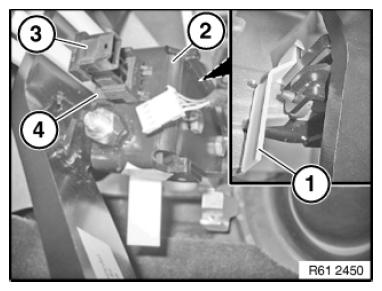

Fig 2: Identifying Brake Light Switch, Holder, Pedal Assembly Lug And Adjusting Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Push adjusting cap (1) over lug of pedal assembly (2).

Push brake light switch (3) as far as it will go into brake light switch holder (4).

Grip brake light switch holder (4), slowly return brake pedal to initial position and pull back as far as it will go .
