61 31 079 Removing and installing/replacing switch for hazard warning flashers/central locking

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

IMPORTANT: Risk of damage!
Protect middle fresh-air grille in working area against damage, tape off if necessary.

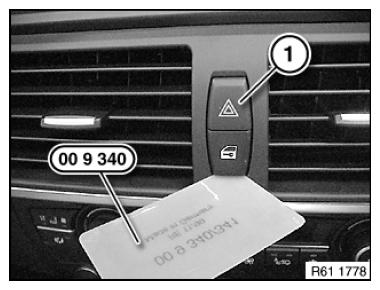

Fig 1: Removing Hazard Warning Flashers/Central Locking Switch Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Lever switch for hazard warning flashers/central locking (1) with special tool 00 9 340 out of middle fresh-air grille and feed out

Disconnect associated plug connection and remove switch for hazard warning flashers/central locking (1).
