61 36 540 Removing and installing/replacing air supply unit relay

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ignition key
Remove TRIM FOR INSTRUMENT PANEL AT BOTTOM RIGHT

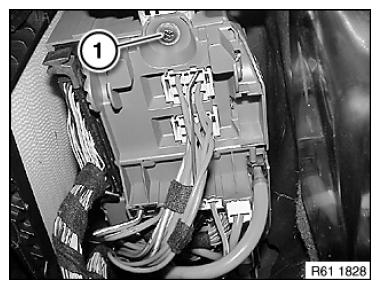

Release screw (1) and fold down passenger compartment fuse box.

Fig 1: Identifying Passenger Compartment Fuse Box Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

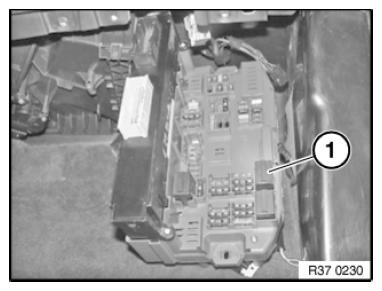

Pull air supply unit relay (1) from passenger compartment fuse box.

Fig 2: Identifying Passenger Compartment Fuse Box Air Supply Unit Relay

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Clear fault memory entries
