61 13 042 Replacing distribution box (luggage compartment)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
E72 Only: Disconnect BOTH NEGATIVE BATTERY CABLES
Remove FLAP IN RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM

E70:

Release expanding rivets (1).

Remove insulating mat (2).

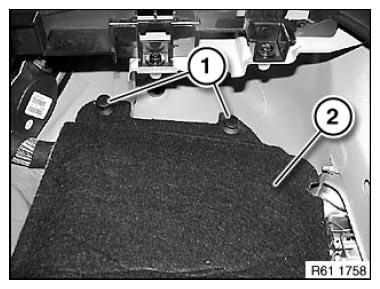

Fig 1: Identifying Insulating Mat And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release wiring harness fastener (2) on distribution box.

Release screws (3).

Pull distribution box forwards slightly in direction of arrow.

Feed emergency actuator (4) out of distribution box.

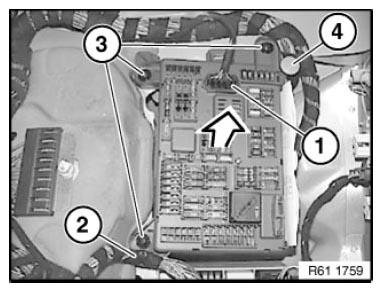

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

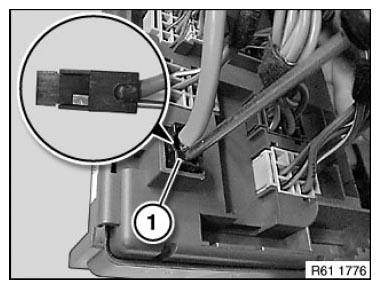

Fig 3: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove distribution box.

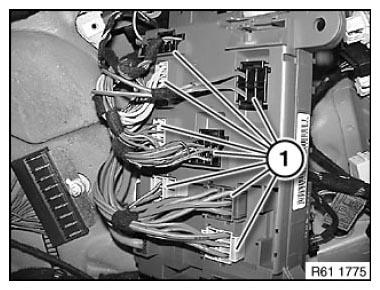

Fig 4: Identifying Distribution Box Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove fuses and relays.
