61 35 954 Removing and installing/replacing interior antenna for comfort access system (rear center console)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR CENTRE CONSOLE TRIM

Unlock retaining hook (1) and remove interior antenna for comfort access system (2).

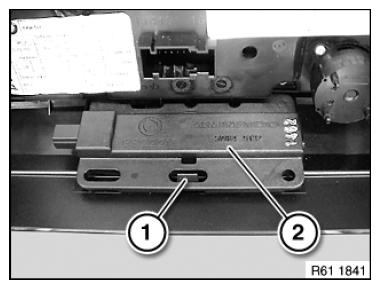

Fig 1: Identifying Comfort Access System And Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.
