84 11 550 Removing and installing/replacing hands-free microphone

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

64 1 020

Lever out front microphone trim (1) with special tool 64 1 020.

Disconnect plug connection underneath and remove microphone trim (1).

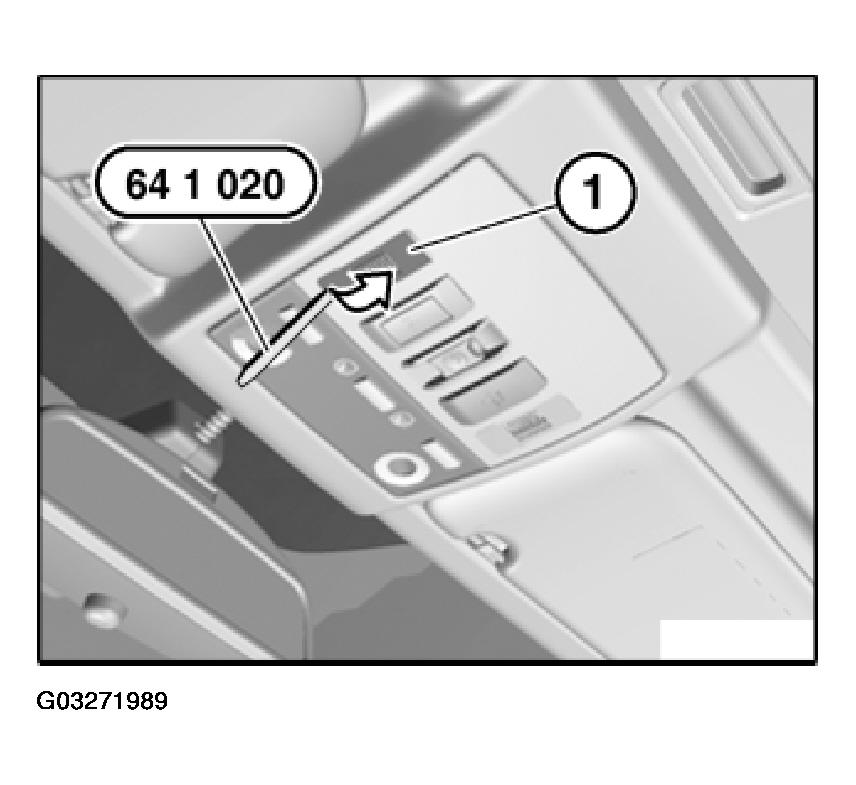

Fig 1: Removing Microphone Trim Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock detent lug (1) and feed out hands-free microphone (2) in direction of arrow.

Installation:

Arrow on hands-free microphone (2) points in driving direction.

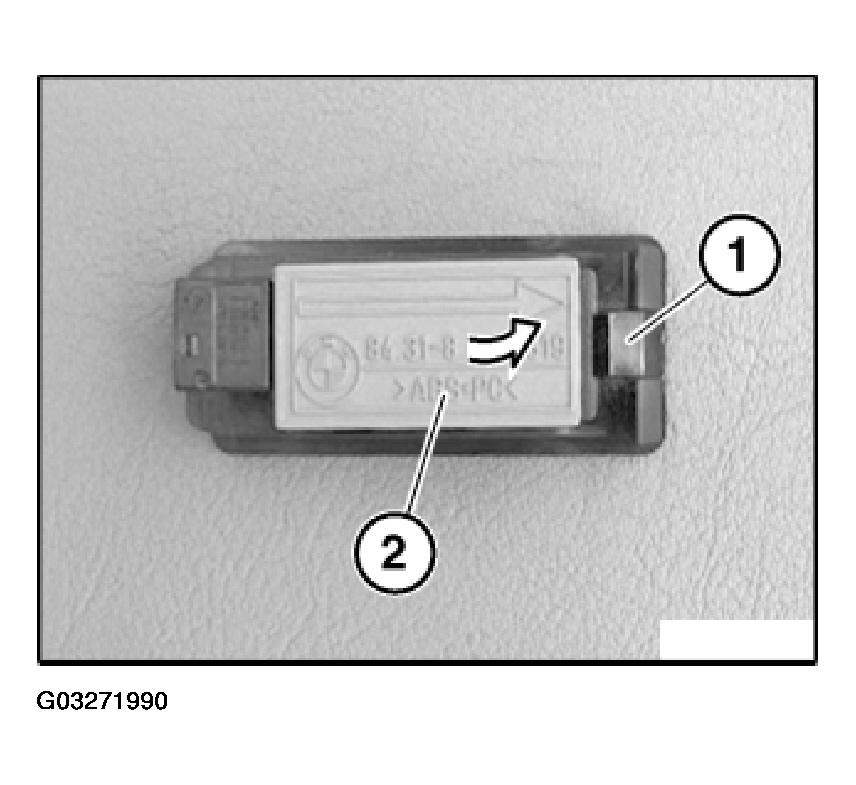

Fig 2: View Of Hands-Free Microphone

Courtesy of BMW OF NORTH AMERICA, INC.
