32 31 102 Replacing steering shaft sleeve

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove stiffening plate (all N73/S63 and F12 N63)
Remove EXHAUST SYSTEM (only N63/N73/S63)
Remove CATALYTIC CONVERTERS cylinders 5-8 (only N63/N73/S63)
Remove heat shield on bulkhead (only N63/N73/S63)
Release UNIVERSAL JOINT WITH CORRUGATED TUBING on "bottom section of steering shaft"
Remove trim panel . See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .

Release bolts and remove bulkhead cover (1) with gaiter.

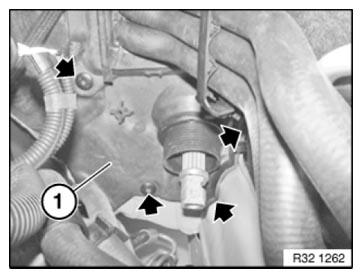

Fig 1: Locating Bulkhead Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Press in latch mechanism from the footwell and press out sleeve (1) from the bulkhead.

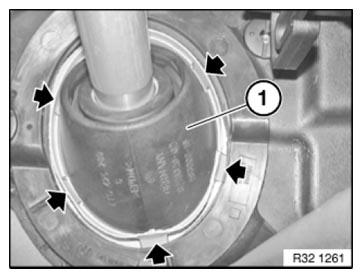

Fig 2: Identifying Bulkhead Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Check installation position.

Press sleeve (1) from the engine compartment out into the bulkhead!

Latch mechanisms of the sleeve must noticeably engage.

-> To check: Visual inspection in footwell!

Spray sealing lip (2) of the sleeve with silicone spray.

Mount bulkhead cover.

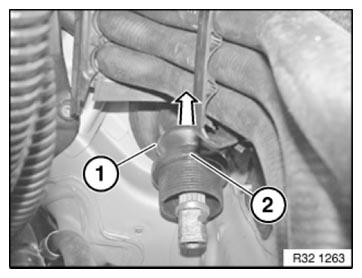

Fig 3: Pressing Sleeve From Engine Compartment Out Into Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure sealing lip is correctly seated.
