2) Quick-connect coupling with indication pins

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

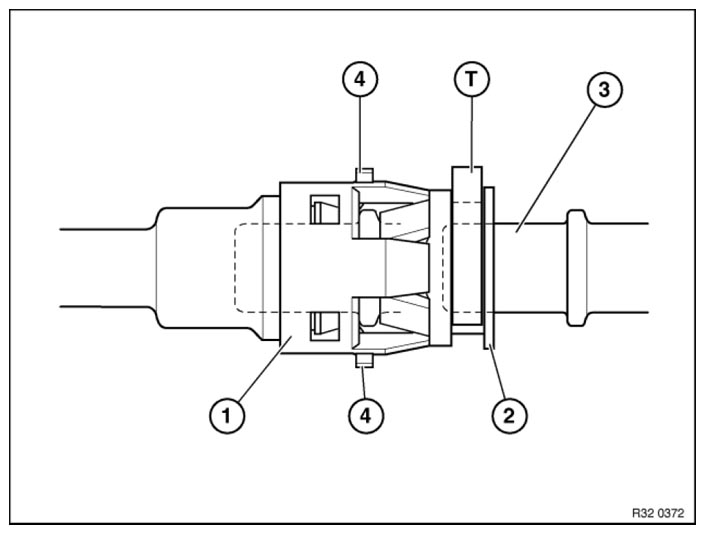

Fig 1: Identifying Quick-Connect Coupling With Indication Pins
G08420969Courtesy of BMW OF NORTH AMERICA, INC.
