33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

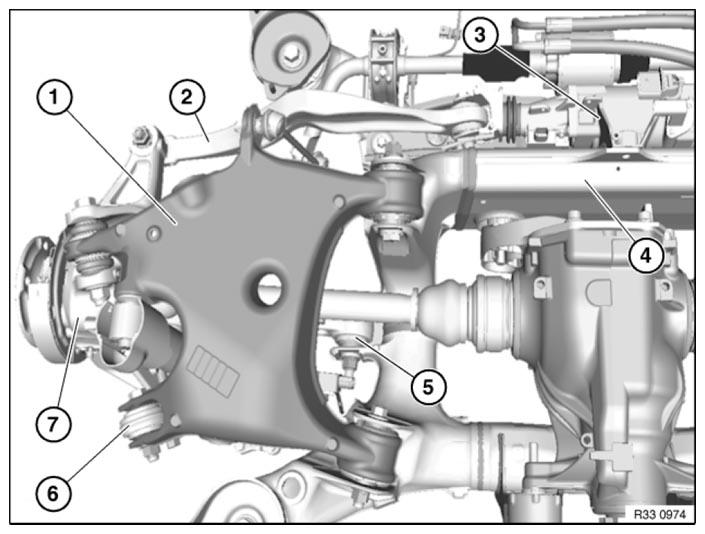

Fig 1: Identifying Rear Axle: Wheel/Chassis Alignment Components

Courtesy of BMW OF NORTH AMERICA, INC.

A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:

Release of following screw/bolt connections:
- Swinging arm, front/rear, to rear axle carrier
- Swinging arm to integral link/wheel carrier
- Guide arm to rear axle carrier/HSR unit
- Wishbone to rear axle support/wheel carrier
Replacement of following parts:
1. Swinging arm
2. Guide arm
3. HSR actuator
4. Rear axle support
5. Wishbone
6. Integral link
7. Wheel carrier
