61 31 492 Replacing level switch for windscreen washer system

Necessary preliminary tasks:

Current version:

NOTE: Catch any escaping washer fluid if necessary.

Disconnect plug connection (1).

Pull level switch for windscreen washer system (3) in direction of arrow out of fluid reservoir for windscreen washer system.

Installation note:

Grommet (2) must not be damaged.

First install grommet (2) in fluid reservoir for windscreen washer system.

Make sure grommet (2) and level switch for windscreen washer system (3) are correctly seated on fluid reservoir for windscreen washer system.

Fill fluid reservoir.

Fig 1: Pulling Level Switch Out Of Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

New version:

Disconnect plug connection (1).

Turn the level switch for the windscreen washer system (2) in direction of arrow.

Pull the level switch for the window washer system (2) out of the washer fluid reservoir for the window washer system (3) toward the bottom.

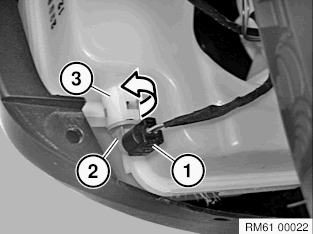

Fig 2: Pulling Level Switch For Windscreen Washer System (New Version)

Courtesy of BMW OF NORTH AMERICA, INC.
