32 31 020 Removing and installing/replacing lower section of steering column trim
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TOP SECTION OF STEERING COLUMN CASING .
- Move steering column in "top" and "extended" position.

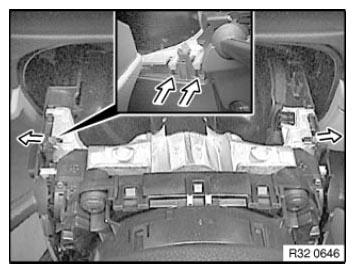

Press detent lugs outwards a little and unclip steering column trim downwards.
Installation:
Align steering column trim by means of detent lugs to steering column and press up as far as it will go.
Press steering column trim on both sides together a little and then press upwards completely until detent lugs snap into place.
Check installation position, correct if necessary.
