65 12 ... Removing and installing/replacing midrange speaker (behind left or right front seat)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove side trim panel at rear left or right. Refer to 51 43 015 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT SIDE TRIM PANEL .

Gently fold panel (1) forwards.

Turn threaded ring (2) in direction of arrow.

Pull out mid-range speaker (3) and disconnect plug connection.

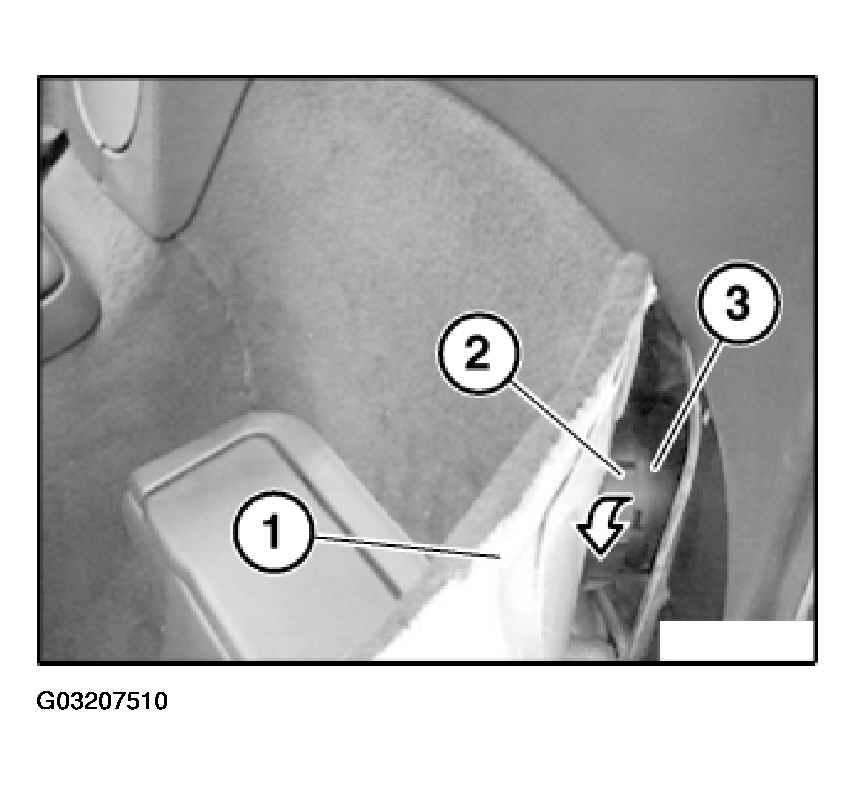

Fig 1: Removing Mid-Range Speaker
G03207510Courtesy of BMW OF NORTH AMERICA, INC.
