52 25... Removing and installing/replacing lid on rear armrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Open cover (1).

Unclip lid (1) in marked area with plastic wedge.

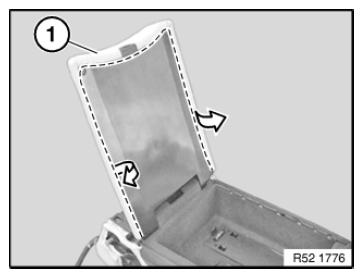

Fig 1: Removing Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Drive out split pin on left and right.

Remove carrier for lid.

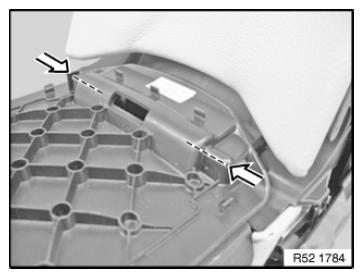

Fig 2: Driving Out Split Pin On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.
