Seat function check

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When using adapter cable 61 4 160 , the functional check of a repaired rear seat can be performed outside the vehicle.

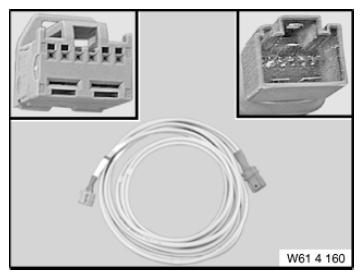

Fig 1: Identifying Adapter Cable
G08509354Courtesy of BMW OF NORTH AMERICA, INC.

Application:

Adapter cable 61 4 160 is connected to vehicle wiring harness and removed seat.
