52 24... Removing and installing/replacing all guide sleeves for rear head restraints
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove HEAD RESTRAINT from rear seat.

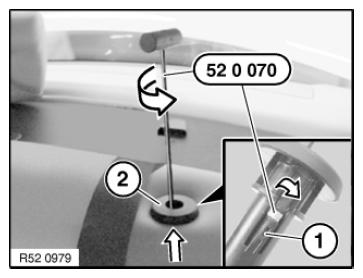

Insert special tool 52 0 070 into guide hole of sleeve (2) up to upper area of retaining lug.
Feed release tongue of special tool into rear gap on retaining lug (1).
Turn tool to release sleeve (2) and pull out by lifting upwards.
Installation:
Replace faulty sleeves.
