52 16... Replacing upholstery for front seat thigh support

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Run thigh support forward as far as possible.

Release screws (1).

Installation note:

Insert screws (1) with Loctite.

Tightening torque 52 10 11AZ .

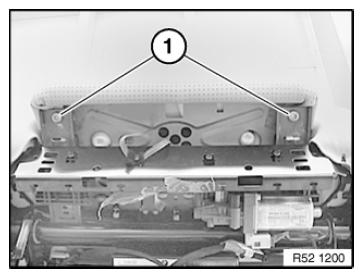

Fig 1: Identifying Front Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook seat cover (1) from marked area.

Remove carrier (2) for thigh support.

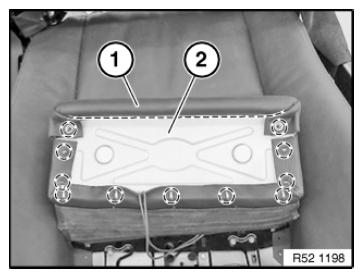

Fig 2: Identifying Seat Cover And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

For seat heating optional extra only:

Carefully detach felt (1) from thigh support.

Unfasten plug connection (2) and disconnect.

Installation note:

Ensure correct cable routing.

Remove upholstery from cover.

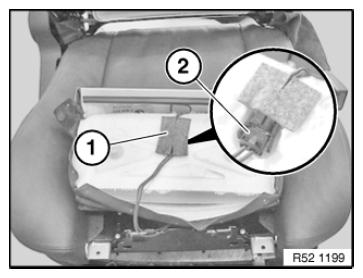

Fig 3: Identifying Support Felt And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
