52 14... Removing and installing covers on seat rails

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Front cover:

Move front seat as far back as possible.

Press retaining lugs of cover with screwdriver downwards and carefully lift off sideways from seat rail
Simultaneously detach cover

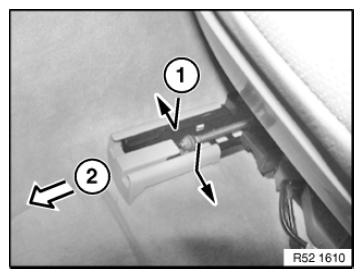

Fig 1: Removing Seat Rails Front Cover
Courtesy of BMW OF NORTH AMERICA, INC.

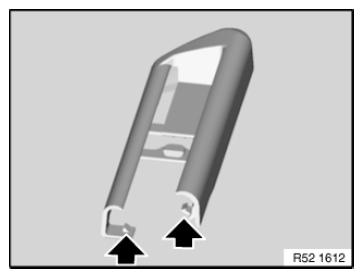

Overview of front cover.

Installation note:

Retaining lugs must not be damaged.

Fig 2: Locating Damages On Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Rear cover:

Move front seat as far forward as possible.

Press retaining lugs of cover with screwdriver downwards and carefully lift off sideways from seat rail
Press locking tab
Simultaneously detach cover

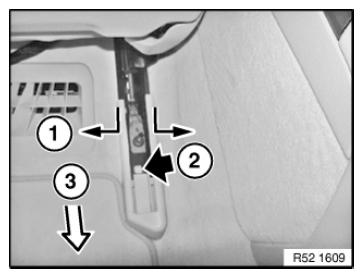

Fig 3: Pressing Locking Tab
Courtesy of BMW OF NORTH AMERICA, INC.

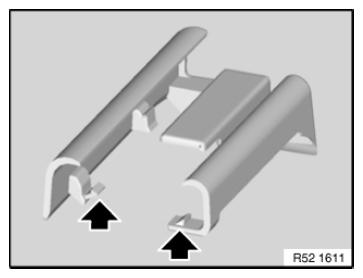

Overview of rear cover.

Installation note:

Retaining lugs must not be damaged.

Fig 4: Locating Damages On Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
