65 12 ... Removing and installing/replacing tweeter/mid-range speaker (left or right front door)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left or right door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Release cable strap (1).

Loosen screws (2).

Remove tweeter/mid-range speaker (3).

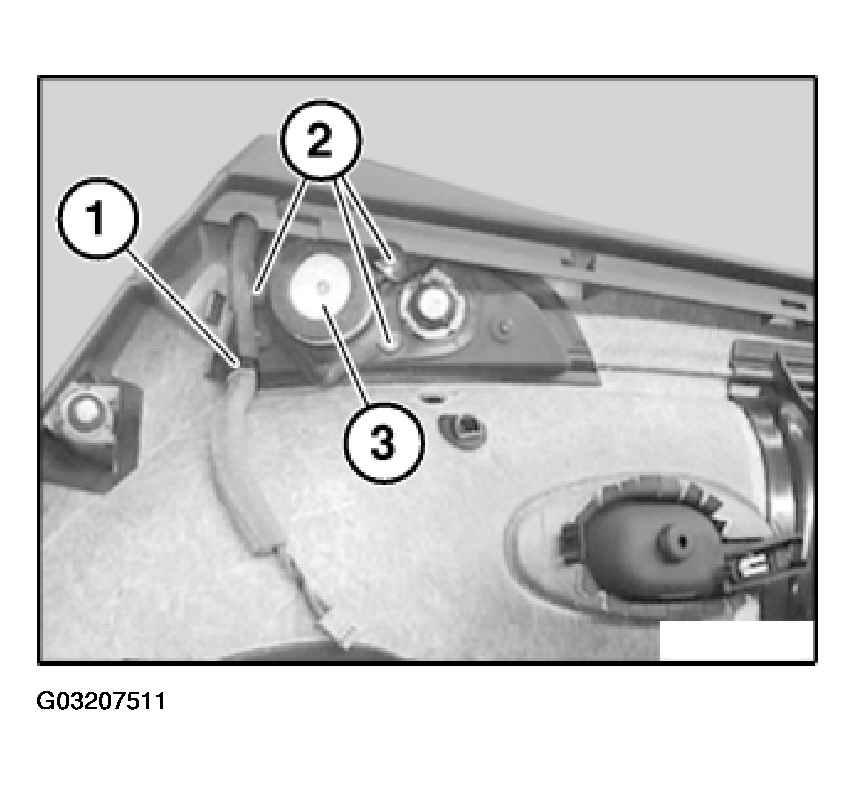

Fig 1: Removing Tweeter/Mid-Range Speaker
G03207511Courtesy of BMW OF NORTH AMERICA, INC.
