65 81 060 Removing and installing/replacing external temperature sensor

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

Pull out external temperature sensor (2) in direction of arrow and remove.

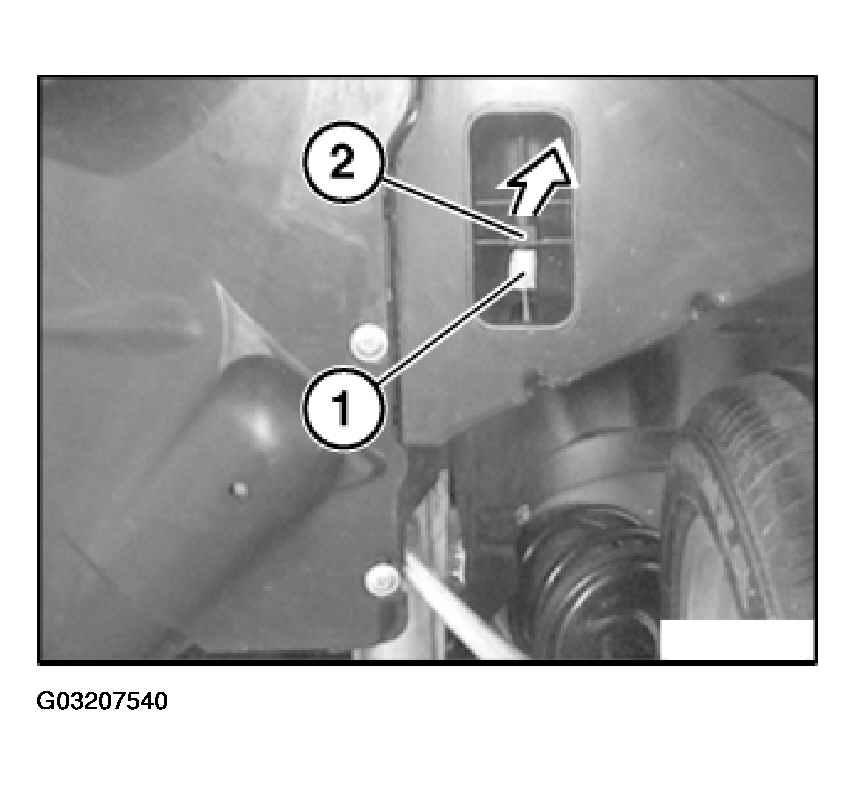

Fig 1: Removing External Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
