65 90 540 Removing and installing/replacing antenna of Global Positioning System (GPS)
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Remove left fresh air grill. Refer to 64 22 135 REMOVING AND INSTALLING/REPLACING LEFT FRESH-AIR GRILL .

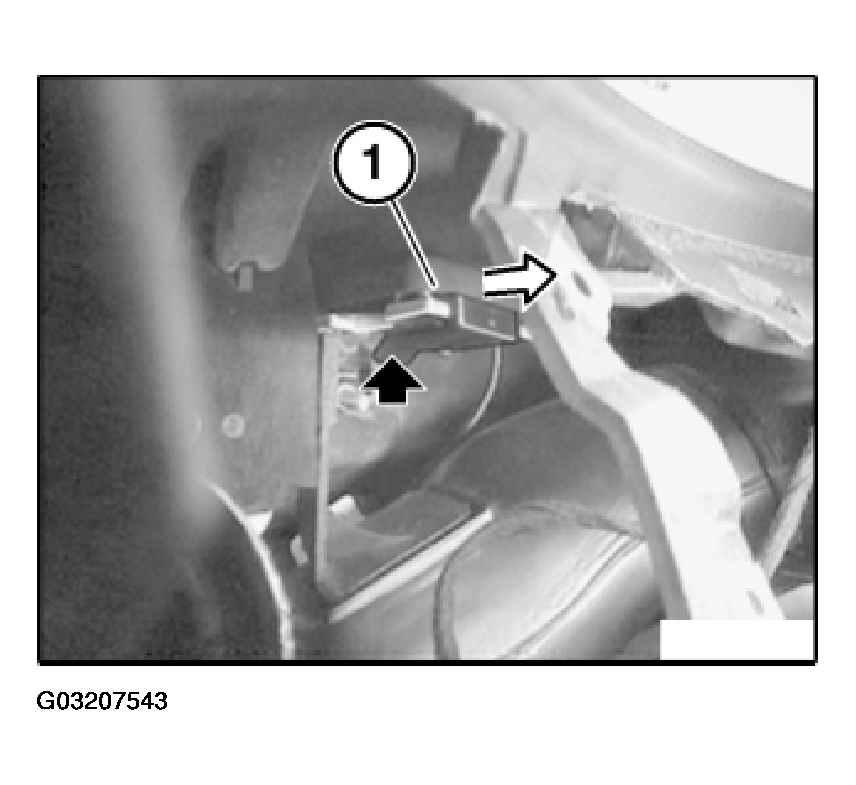

Unclip antenna of Global Positioning System (1) and remove in direction of arrow.
Installation:
Ensure antenna of Global Positioning System (1) is correctly seated.
Disconnect plug connection.
