65 90 510 Removing and installing/replacing navigation computer with CD-drive

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

65 5 400

Replacement:

Load operating software and carry out coding (refer to Diagnosis and Information System).

Open storage box (1).

Fig 1: Opening Storage Box

Courtesy of BMW OF NORTH AMERICA, INC.

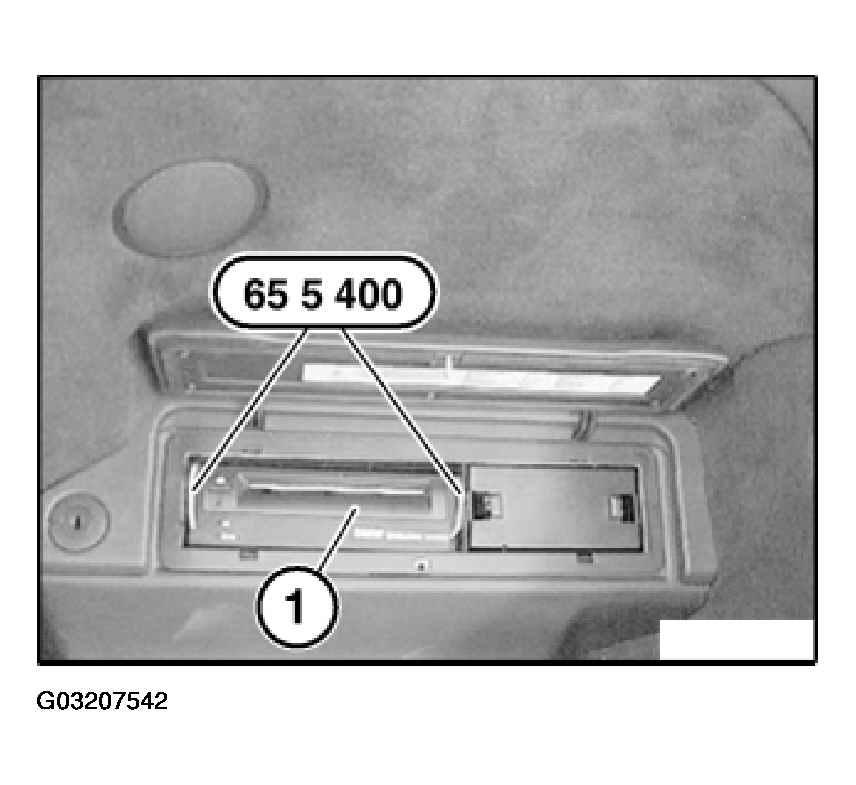

Unlock navigation computer (1) with special tool 65 5 400 and pull out.

Fig 2: Unlocking Navigation Computer

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.
