12 14 537 Replacing camshaft pulse generator

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Switch off ignition
Read out fault memory of DME control unit
Check stored fault messages
Remove right engine support arm, refer to 22 11 100 REPLACING RIGHT ENGINE MOUNTING BRACKET (FROM 12.03) or 22 11 100 REPLACING RIGHT ENGINE MOUNTING BRACKET (UP TO 12.03)

Unlock and disconnect pulse generator plug.

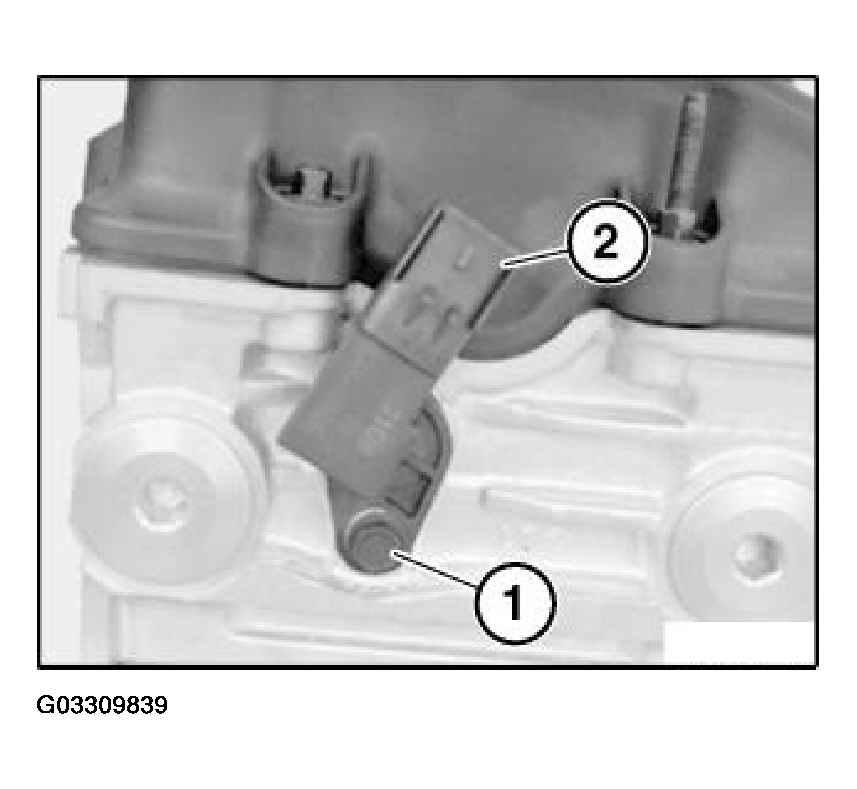

Fig 1: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1), remove pulse generator (2).

Installation:

Replace sealing ring and coat with antiseize agent.

Tightening torque 13 62 1AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

NOTE: Now clear the fault memory.
