Convertible Top Frame

The convertible top frame with its various brace sections and pillars forms the basic structure of the convertible top. No repair procedures are planned for the convertible top frame. If damaged, the complete convertible top frame must be replaced.

The convertible top cover with the integrated glass rear window can be replaced, however, replacement of the rear window itself is not possible.

The sections of inner headliner can be replaced individually. Likewise, all tensioning parts, seals, trim strips and operating cables for the sliding roof are available as spare parts.

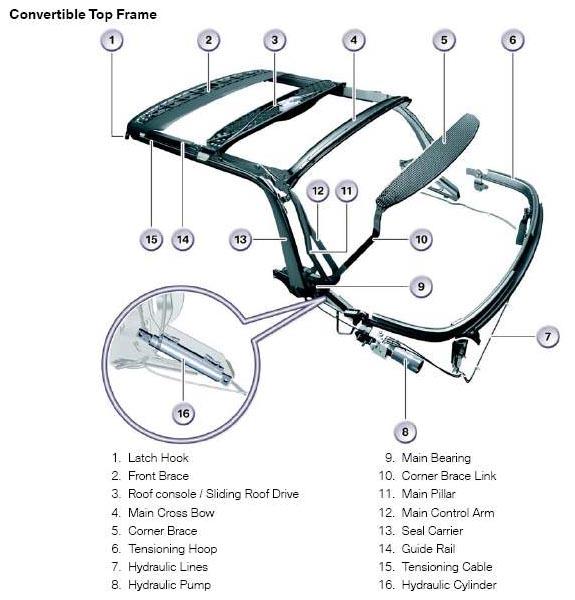

Fig 1: Convertible Top Frame
G04730504Courtesy of BMW OF NORTH AMERICA, INC.
