Shift Mechanism

The shift mechanism consists of a single shift shaft and four shift rods. The shift shaft is supported by roller bearings. The shift forks are manufactured from die cast aluminum. See Fig 1 -Fig 2 .

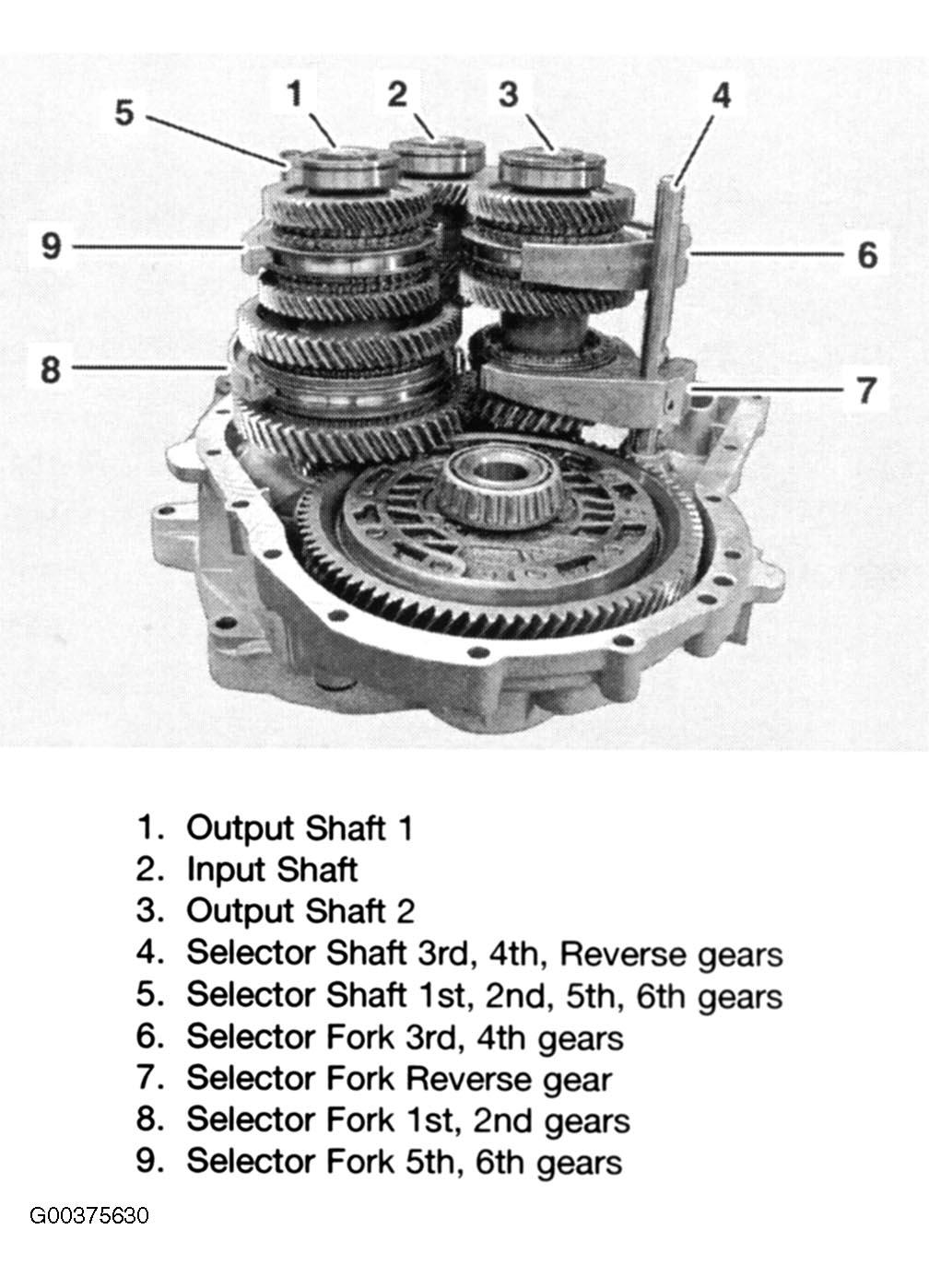

Fig 1: Identifying Getrag Shift/Selector Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Getrag Internal Selector Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
