Drive Plate

The engine is connected to the input shaft in the transmission, via a torsional damper, instead of the torque converter used by more conventional automatic transmissions. See Fig 1 .

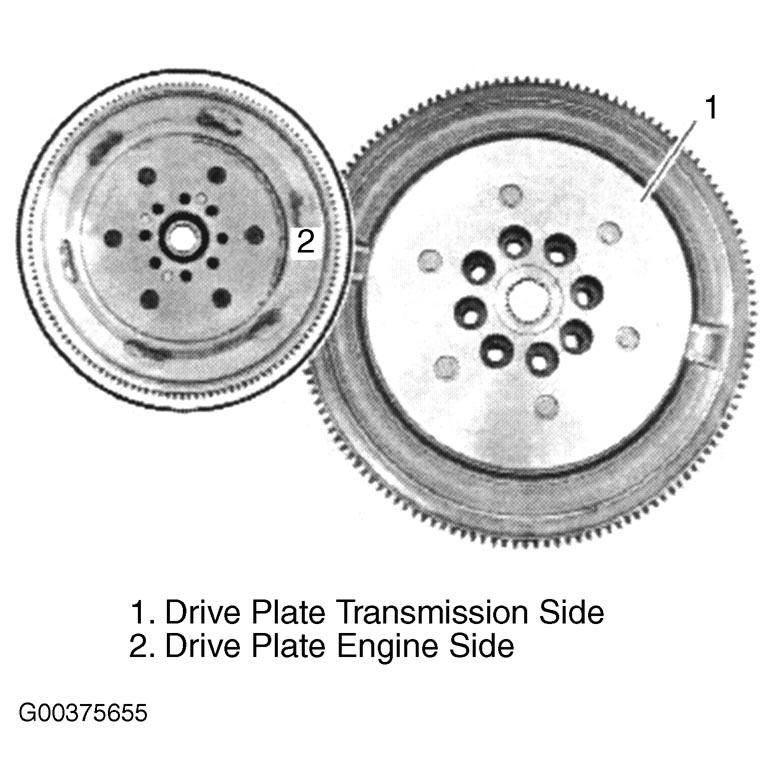

Fig 1: Identifying Drive Plate
G00375655Courtesy of BMW OF NORTH AMERICA, INC.
