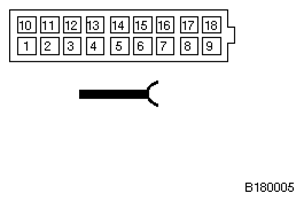

Control Module, Tire Failure Indicator (RPA) X13806 Connector End View
Pin Assignments At Plug Connector X13806
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E/A | K-bus signal | K-bus connector |
| 2 | Not used | ||
| 3 | E | Brake light test signal | Connector Brake light test signal |
| 4 | E | Signals, tire inflation pressure monitoring system rear | ABS control module ABS/DSC unit |
| 5 | Not used | ||
| 6 | E | Rear right wheel speed | Connector Rear right wheel speed |
| 7 | Not used | ||
| 8 | Not used | ||
| 9 | M | Ground | Ground connection X13230 |
| 10 | E | Voltage supply | Fuse F30 |
| 11 | Not used | ||
| 12 | E | Signals, tire inflation pressure monitoring system front | ABS control module ABS/DSC unit |
| 13 | Not used | ||
| 14 | E | Signal Initialisation button RDKS | Switch, tire failure indicator (RPA) |
| 15 | Not used | ||
| 16 | E | Conditioned wheel speed, front left | ABS control module ABS/DSC unit |
| 17 | Not used | ||
| 18 | Not used |
