Rear Hatch Concept (Convertible): Notes

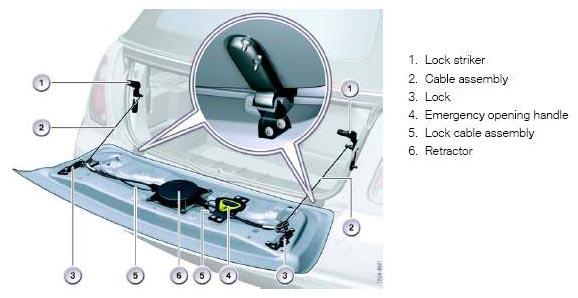

The rear hatch for the R52 MINI Convertible is a different from the coupe. The actuator motor for unlocking the rear hatch locks is driven by pressing the button between the license plate lights.
The actuator motor moves a lever, which in turn moves the attached cable assemblies of the rear hatch locks. As the lever moves the cable assemblies are pulled thus releasing the rear hatch locks.
The rear hatch can opens downward. Two steel cables with a sprung retractor systems hold the opened rear hatch in position. This makes it possible to use the rear hatch with the exterior-mounted hinges can be used as a loading facility that can support loads weighing up to 80 kg (176 lbs).
The steel cables are wound up by the spring effect in the retractor housing when the rear hatch is closed.
