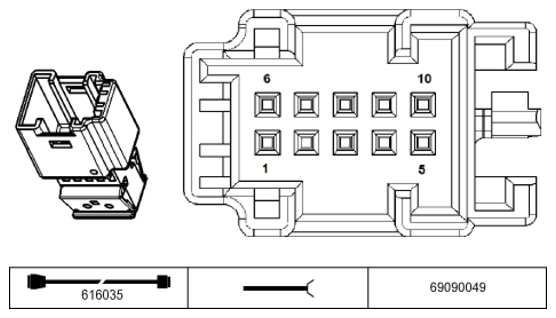

Automatic Transmission Central Shift Unit X01098 Connector End View
Pin Assignments At Plug Connector X01098
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Terminal 87 | Fuse F04 |
| 2 | M | Ground | Ground point |
| 3 | A | Signal Selector lever position P | A7000 Transmission control unit |
| 4 | A | Signal Selector lever position R | A7000 Transmission control unit |
| 5 | A | Signal Selector lever position N | A7000 Transmission control unit |
| 6 | A | Signal Selector lever position D | A7000 Transmission control unit |
| 7 | A | Signal, Tiptronic DOWN | A7000 Transmission control unit |
| 8 | A | Signal, Tiptronic UP | A7000 Transmission control unit |
| 9 | A | Signal Selector lever position Sport | A7000 Transmission control unit |
| 10 | Not used |
