Securing engine in installation position with special tool (W10/W11)

Special tools required:

Necessary preliminary tasks:

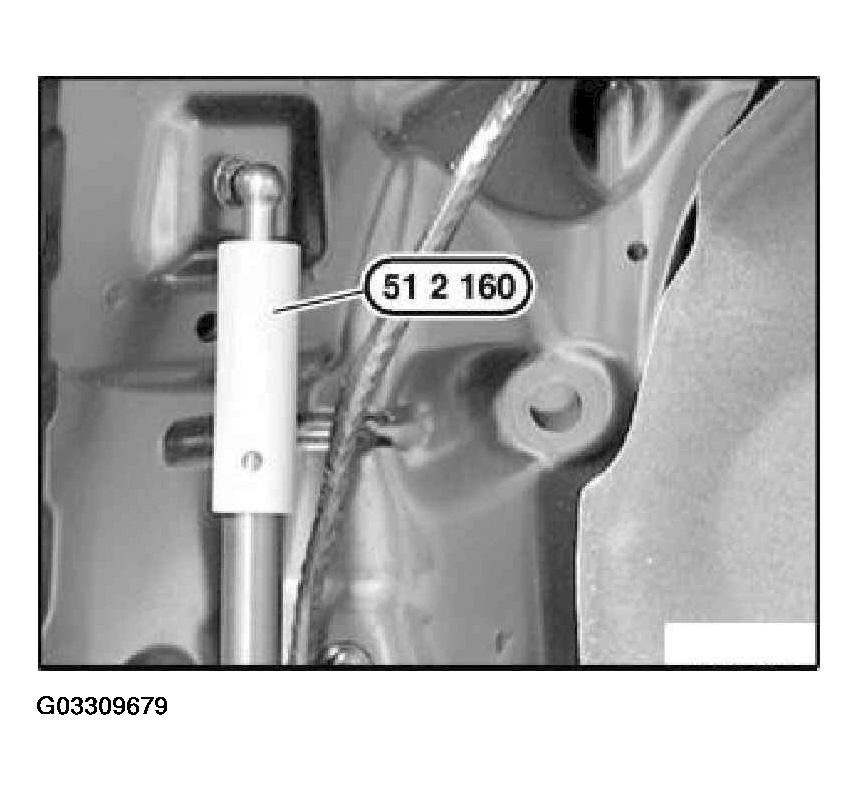

Install special tool 51 2 160.

Fig 1: Installing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Reduce excess pressure in cooling system.

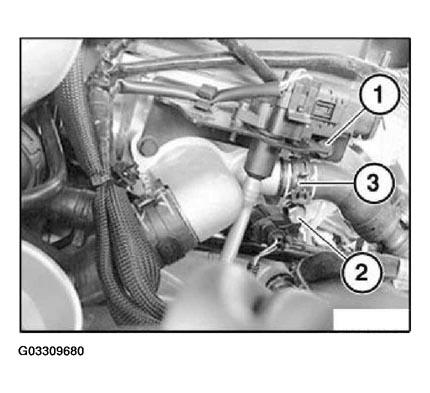

Release screw (1).

Fig 2: Releasing Coolant Line Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Lay bracket for oxygen sensor to one side.

Release screw (2).

Release coolant line clamp (3).

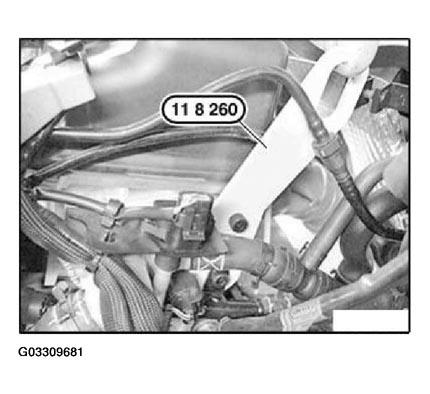

Screw special tool 11 8 260 onto cylinder head.

Fig 3: Screwing Special Tool Onto Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The water pipe is also secured to special tool 11 8 260 at the same time. See Fig 3 .

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 205 / 00 0 207 / 00 0 209 and fit.

Fig 4: Installing Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove plug before fitting special tool.
Risk of damage on both side walls.

Assemble engine.
