CONTROL ARM TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 03 02, Date of Issue: March 2002

MINI:	R50
GROUP:	Tools and Equipment

SUBJECT

Control Arm Tools

MODEL

R50

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment. All special tools in the MINI repair manual carry the prefix "88 88 0 XXX XXX" or "90 88 0 XXX XXX". Check the prefix in the parts computer before ordering special tools from the repair manual.

TOOL INFORMATION

Control Arm Press

PN 90 88 0 315 140

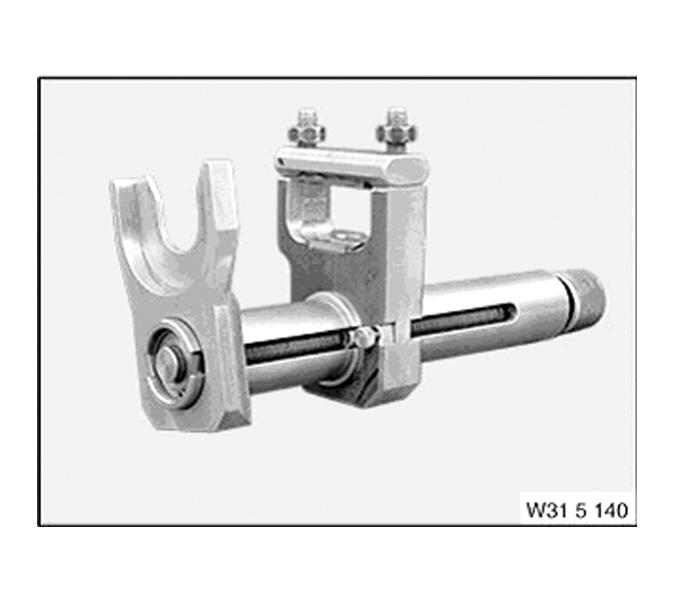

Fig 1: Control Arm Press

Used to R & R the lower control arm. Refer to repair manual section 31 12 001.

Application note: Never use an air impact driver on the control arm press as damage can result. Instead, use a hand ratchet or a geared electric drill with a low range such as the Milwaukee Hole Hawg (model 1675-6) manufactured by Milwaukee Electric Tool corp. Information regarding sales centers for Milwaukee Electric tool can be found by calling 262 781 3600.

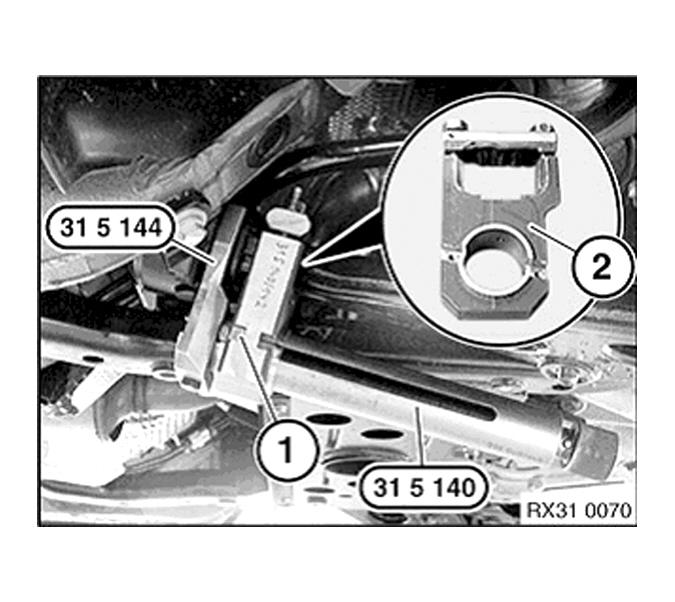

Fig 2: R & R Lower Control Arm

Control Arm Bushing Tool

PN 90 88 0 315 150

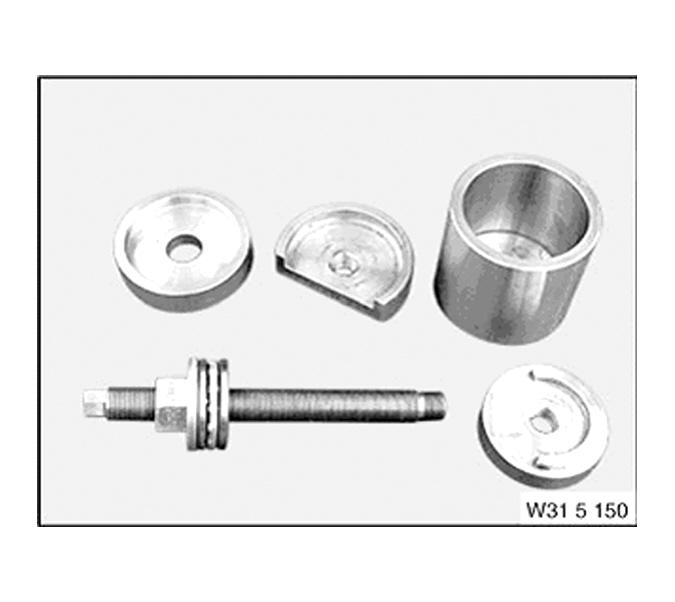

Fig 3: Control Arm Bushing Tool

Used to R & R the rubber bushing on the control arm. Refer to repair manual section 31 12 130.

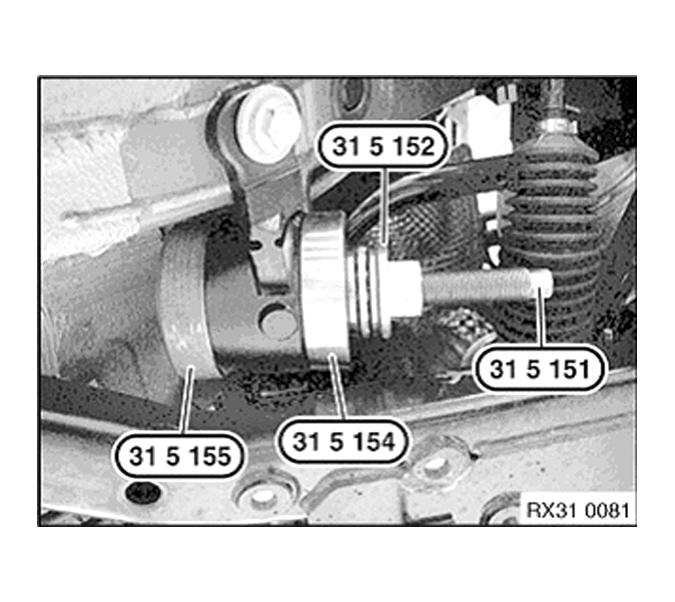

Fig 4: R & R Rubber Bushing On Control Arm
