Disabling Double Lock (M61 06 02)

WARNING: This page is about the Cooper Base, Automatic CVT, which is a different variant/trim than selected.
Publication date: 2002-12-01
Reference number: M61 06 02

DISABLING DOUBLE LOCK

DISABLING DOUBLE LOCK

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M 61 06 02, Date of Issue:  December 2002
MINI: R50 (Cooper), R53 (Cooper S) Vehicles before 9/02
GROUP: General Electrical Systems

SUBJECT

Disabling Double Lock

MODEL

R50 (Cooper), R53 (Cooper S) Vehicles before 9/02

SITUATION

On a customer request basis, double lock can be disabled. The procedure is not reimbursable under warranty.

PROCEDURE

  1. Disconnect the battery.
  2. Remove the driver's door panel (refer to repair Instruction 51 41 000)
  3. Remove the plug connector (X747) from the door lock motor. Unclip the door harness from inner door panel to provide access to the connector. In doing so, note the routing of the harness in preparation for reassembly.
  4. Spread out the locking tabs (1) and push down on the wires to release the outer part of the connector.

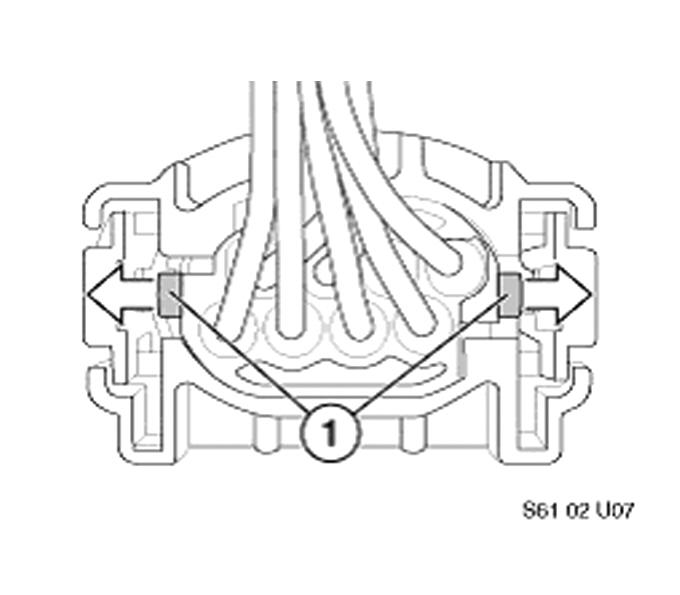

    Fig 1: Releasing Outer Part Of Connector
    G04172032
  5. There are two pink locking tabs, one on each side of the connector.

    Locate the pink locking tab adjacent to connector position #8 (white wire). Remove the locking tab by pressing down (1) as shown, and slide off to the left (2).

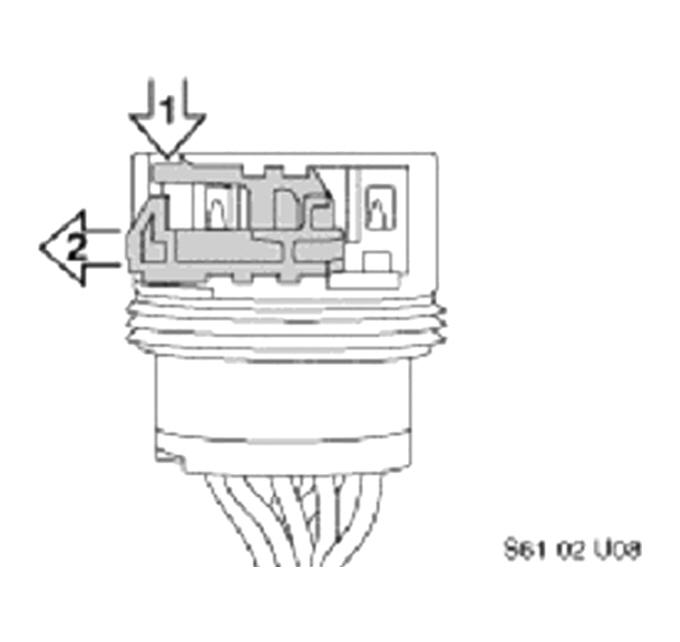

    Fig 2: Removing Locking Tab
    G04172033
  6. Release the white wire terminal (1) from connector position # 8 and fold back against the harness as shown.

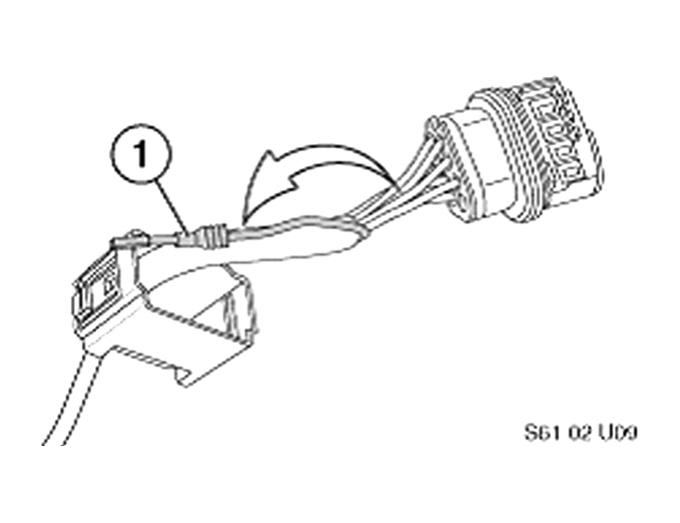

    Fig 3: Removing Wire Terminal From Connector
    G04172034
  7. IMPORTANT  Apply RTV silicone sealant to the vacant hole (1) (connector position # 8) in order to waterproof the connector.

    Tape back the white wire using electrical tape (2).

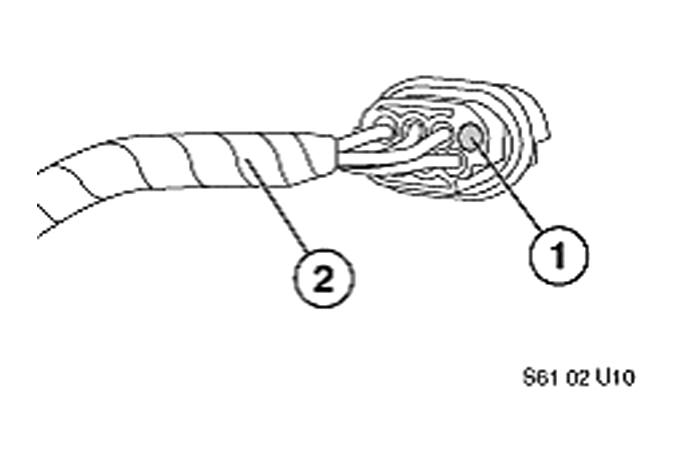

    Fig 4: Taping Back White Wire Using Electrical Tape
    G04172035
  8. Reassemble the plug connector. Reinstall the wiring harness (be sure to follow the correct routing - see step 3). Reinstall the plug connector into the door lock motor. Reinstall the driver's door panel.
  9. Repeat the procedure for the passenger's door lock motor connector X742.
  10. Reconnect the battery.
  11. Test for correct operation - sit in the vehicle with the doors closed, and lock the vehicle using the remote control. Check that both the driver's door and the passenger's door can be opened on the second pull of the door handle.

WARRANTY INFORMATION

Not reimbursable under warranty.
