Front Carrier

Remove front bumper trim. See FRONT BUMPER TRIM under REMOVAL & INSTALLATION in GENERATORS & REGULATORS - MINI article. Remove cable for outside temperature sensor from carrier. See Fig 1 . Remove nuts and bolts, and detach carrier for front bumper trim. See Fig 2 -Fig 3 . To install, reverse removal procedure.

Fig 1: Removing Cable For Outside Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Removing Carrier For Front Bumper Trim (Version "A")

Courtesy of BMW OF NORTH AMERICA, INC.

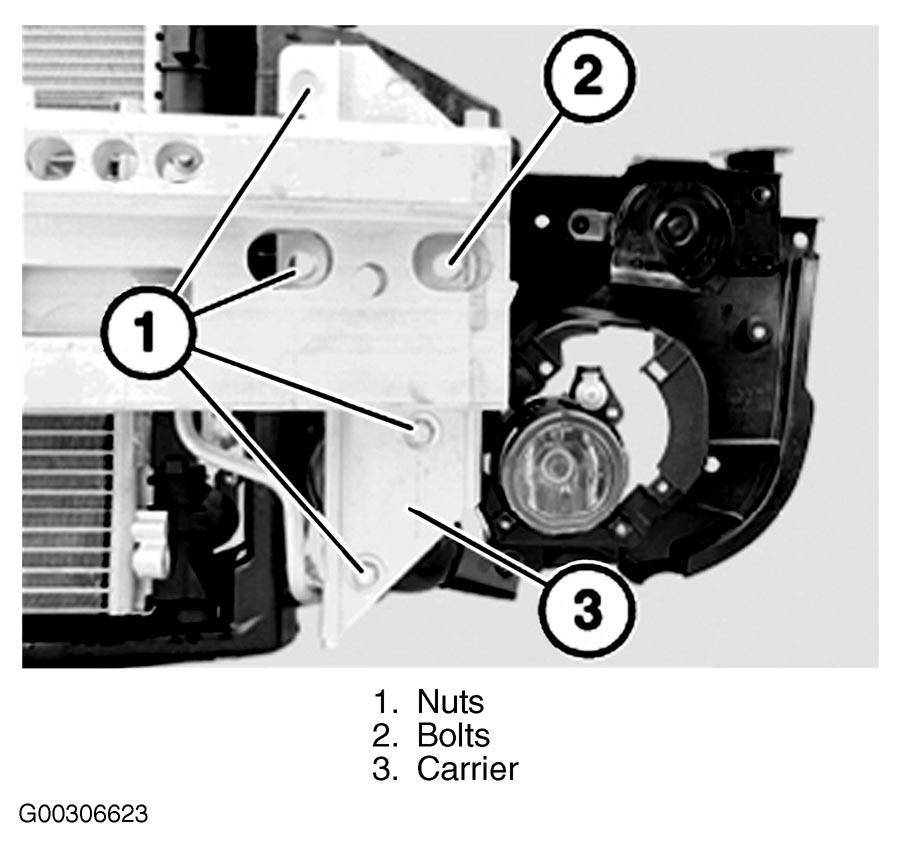

Fig 3: Removing Carrier For Front Bumper Trim (Version "B")

Courtesy of BMW OF NORTH AMERICA, INC.
