IKE Test Functions

In addition to the fault memory and diagnostic link, the base instrument cluster contains a series of test functions that can be accessed to check various functions and values. The test functions are displayed in the mileage LCD block. There are a total of 21 test functions.

The test functions are similar to those of previous Board computers and contain similar tests.

• Tests 1 & 2 are always unlocked.
• Tests 3 -21 are only accessible after unlocking the test function. Test 19 is the unlock function for accessing the displays.

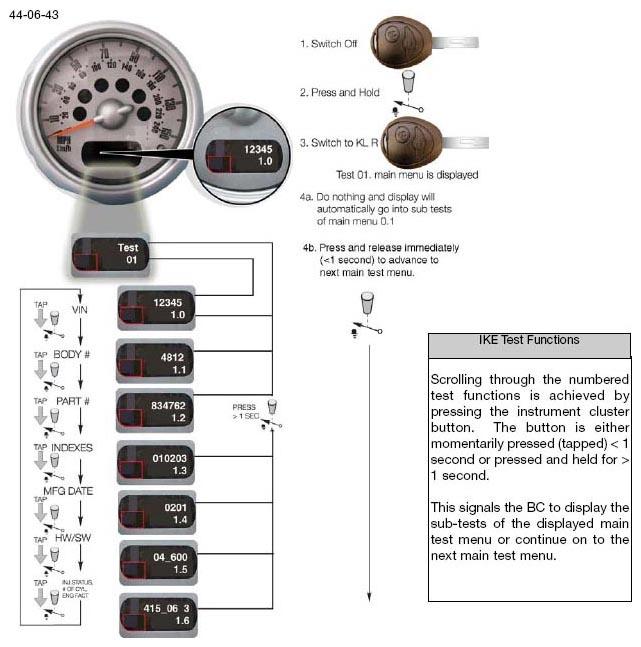

  Fig 1: IKE Test Functions (1 Of 6)

  Courtesy of BMW OF NORTH AMERICA, INC.

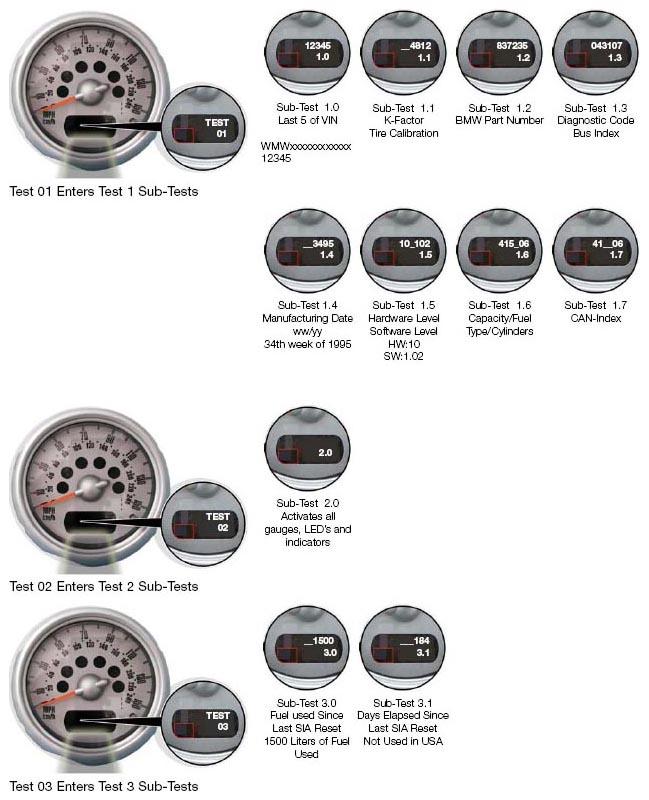

  Fig 2: IKE Test Functions (2 Of 6)

  Courtesy of BMW OF NORTH AMERICA, INC.

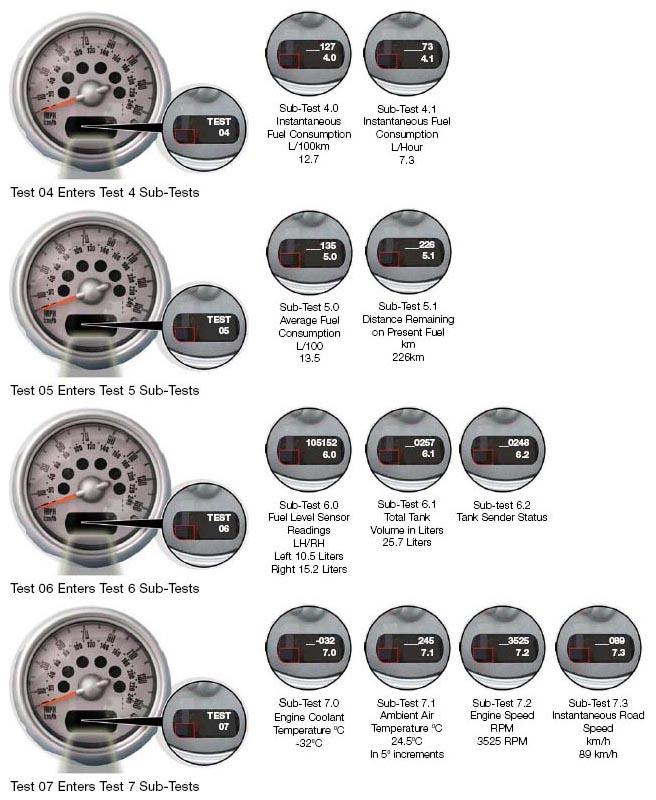

  Fig 3: IKE Test Functions (3 Of 6)

  Courtesy of BMW OF NORTH AMERICA, INC.

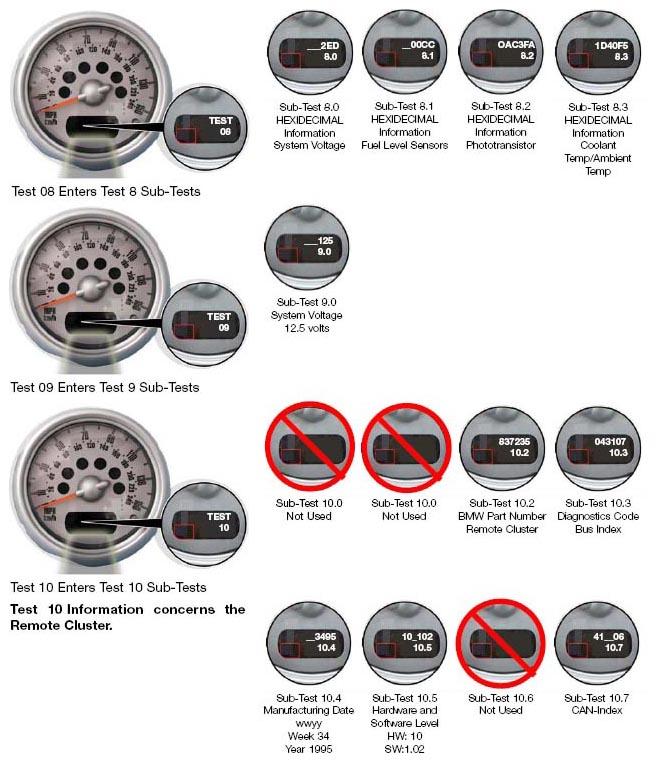

  Fig 4: IKE Test Functions (4 Of 6)

  Courtesy of BMW OF NORTH AMERICA, INC.

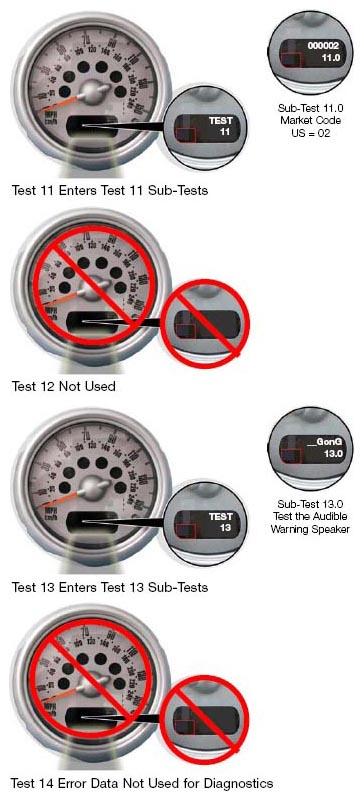

  Fig 5: IKE Test Functions (5 Of 6)

  Courtesy of BMW OF NORTH AMERICA, INC.

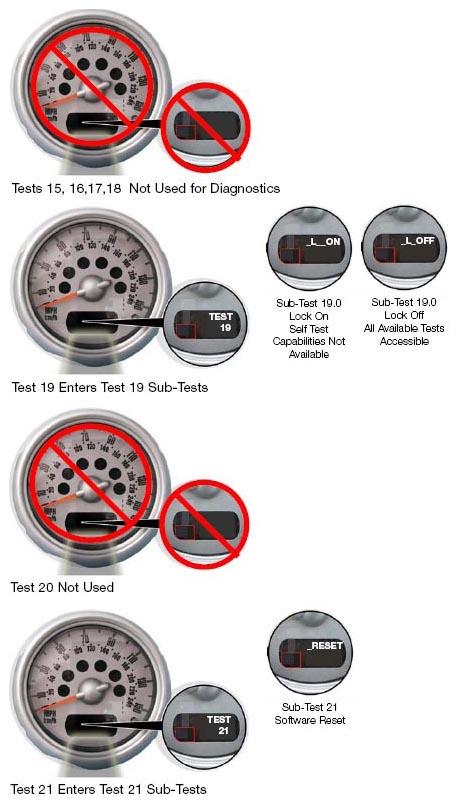

  Fig 6: IKE Test Functions (6 Of 6)

  Courtesy of BMW OF NORTH AMERICA, INC.
