Cross Members

There are six cross members on all MINI COOPER floor frames.

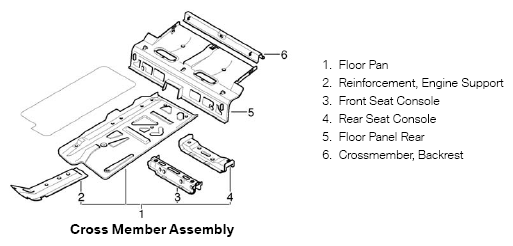

Fig 1: Cross Members Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

The cross members are of a transversely connected design in conjunction with the aluminum bumper armature.

• Bulkhead cross member
• Front cross member, front floor pan (for acoustic and side impact)
• Rear cross member, front floor pan (for acoustic and side impact)
• Heel board cross member (for side impact)
• Assembly cross member, luggage compartment partition combined with cross member rear axle support
• Cross member at body rear

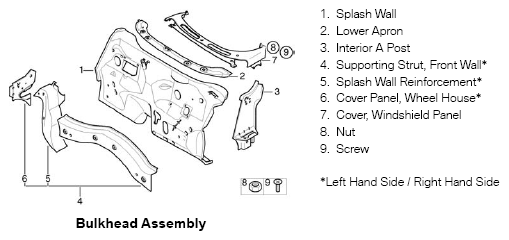

Fig 2: Bulkhead Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
