Clutch - Cooper: Bleeding

NOTE: Numbers in text refer to numbers in figures.

Remove dust cap from bleeder screw. Connect pressure venting unit to bleeder screw (1). See Fig 1. Attach special tool (21 5 030) to clutch slave cylinder. Open bleed screw, ensuring opening pressure does not exceed 1 bar. Close bleeder screw when no further air bubbles emerge. Otherwise repeat the procedure. Correct fluid level in brake fluid reservoir. See Fig 2.

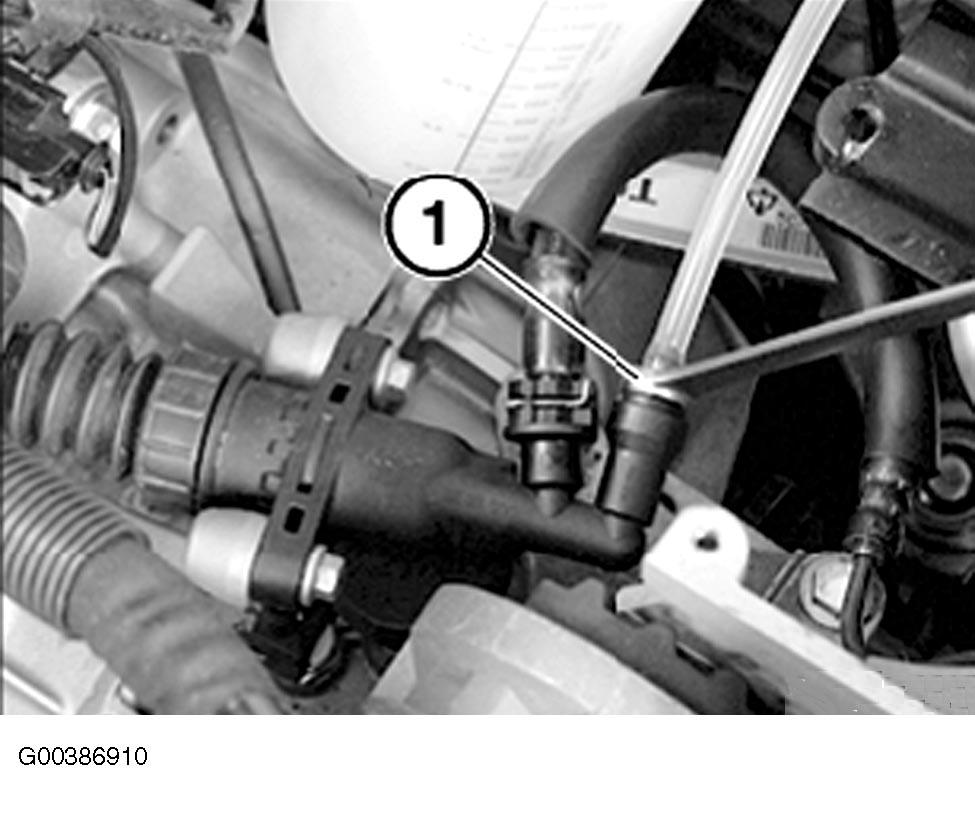

Fig 1: Connecting Pressure Venting Unit To Bleeder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

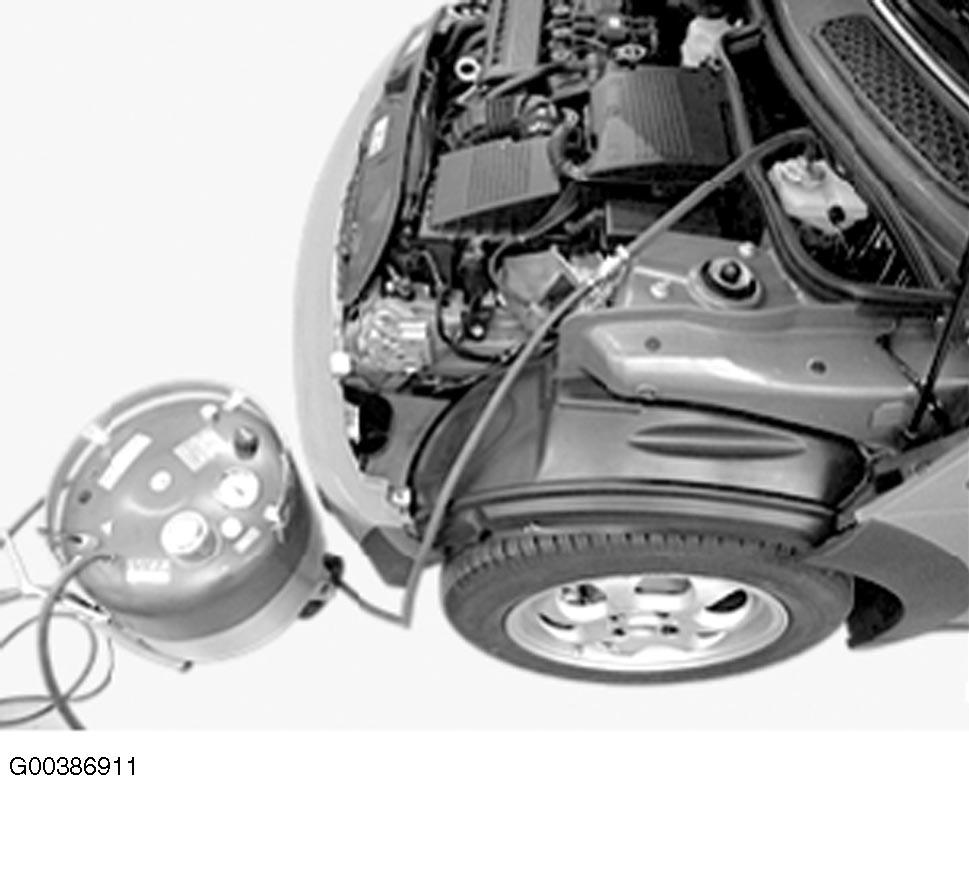

Fig 2: Bleeding Clutch Hydraulic System

Courtesy of BMW OF NORTH AMERICA, INC.
