11 00 039 Checking compression at all cylinders

NOTE:

Special Tools Required:

NOTE: Read out fault memory of EMS/DME control unit, check stored fault messages, rectify faults and clear fault memory. Switch off ignition.

CAUTION: High tension - danger! Interrupt voltage supply to ignition coils.

Detach plug connector from ignition coil unit.

Press securing clip (1) away.

Detach plug connector (2).

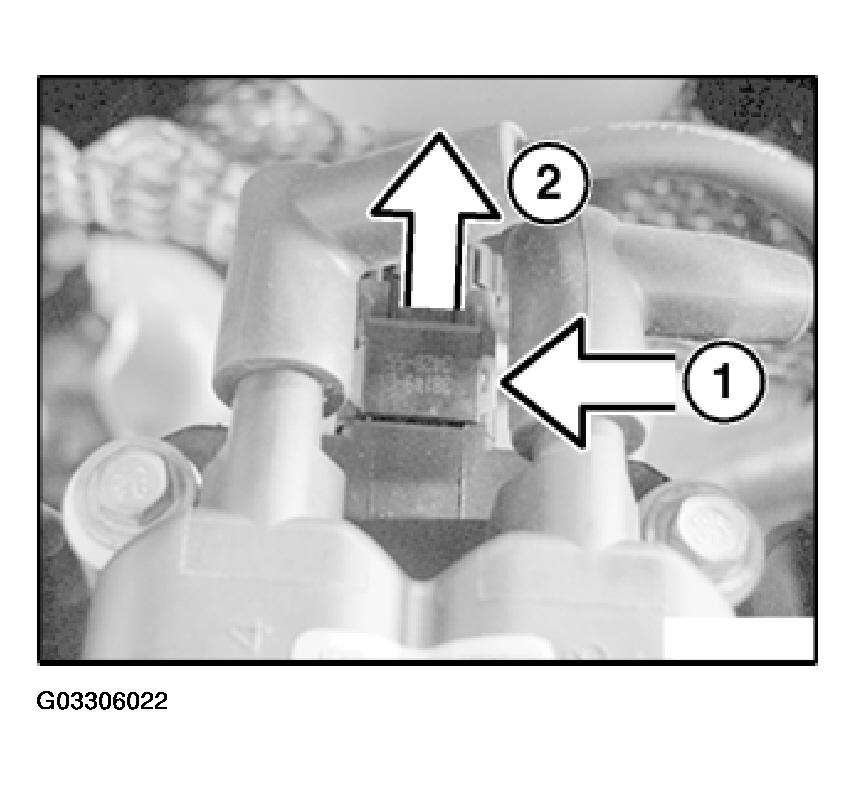

Fig 1: Detaching Plug Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew all spark plugs. Refer to 12 12 011 REPLACING ALL SPARK PLUGS .

Screw special tool 11 8 490 into spark plug thread and connect special tool 11 0 224.

Make sure seal of adapter tool is in proper working order.

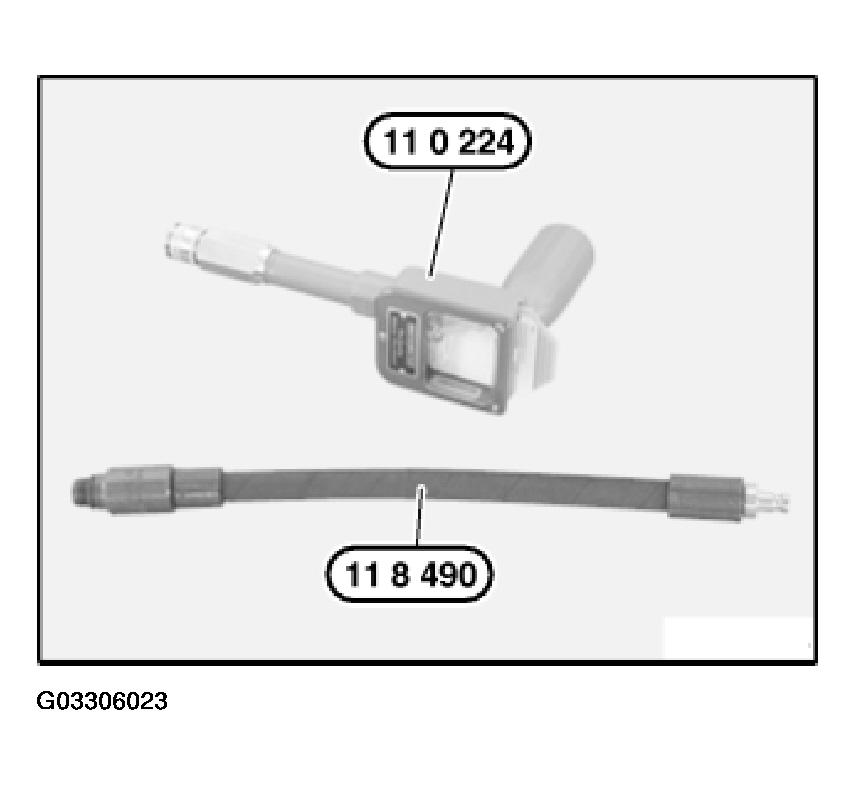

Fig 2: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Press accelerator pedal to floor and actuate starter motor until compression pressure stops rising.

Compression pressure.

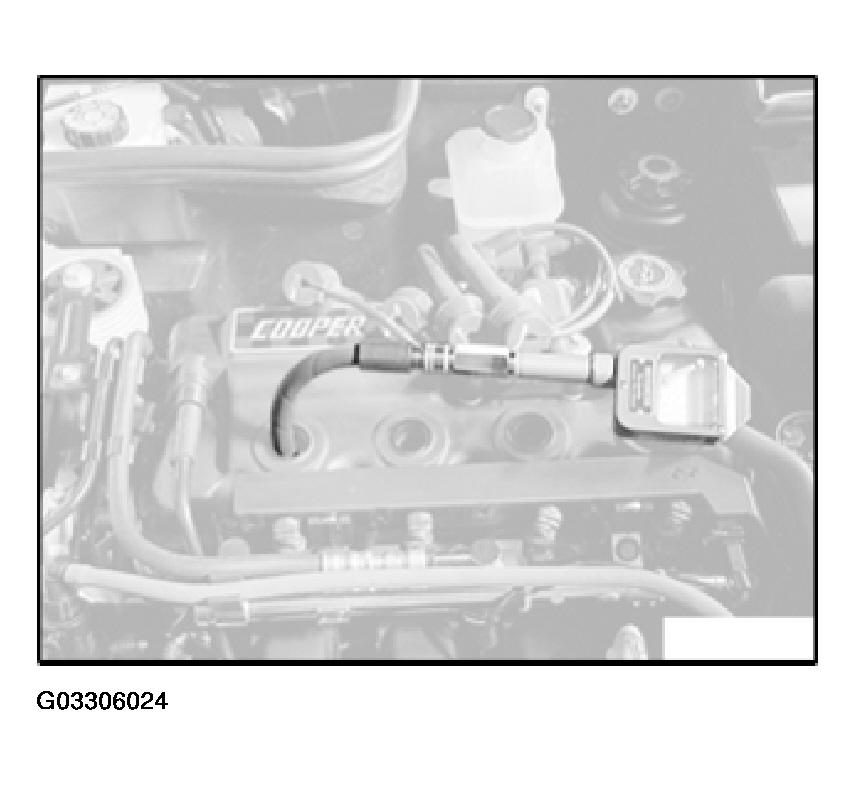

Fig 3: Measuring Compression Pressure

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Disconnect ignition unit; this results in a defect trouble code being output during starting.

Connect DIS and delete stored faults.

NOTE: Read out fault memory of EMS/DME control unit, check stored fault messages, rectify faults and clear fault memory.
