Testing Generator using Measurement System: Notes
Enter the measurement system and select Preset Measurements.
Instruction on the proper hook-ups required are available through the HELP button, selecting Help using Preset Measurement.

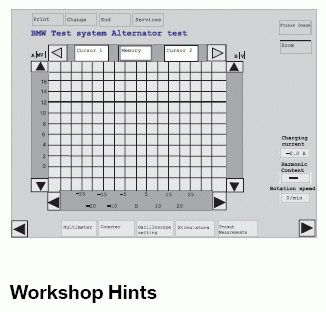

The oscilloscope will display preconfigured for the testing.
Diagnostic information available through oscilloscope.
- Voltage Graph.
- Charging Current.
- Harmonic Content.
- Rotation Speed (Engine RPM).
